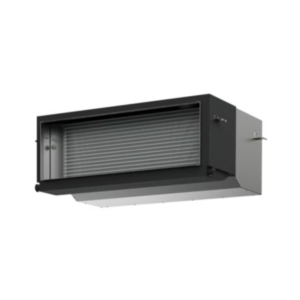

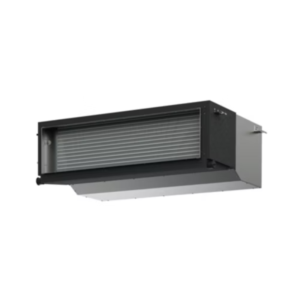

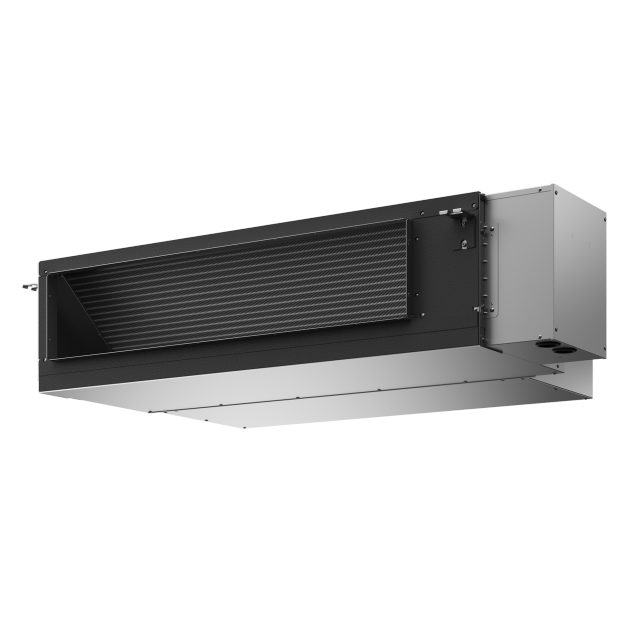

Panasonic R32 Inverter NX Series Splittable Ducted PE4

Simplified installation for new and existing buildings

A new compact 6.0–16.0 kW model joins our splittable duct range. The indoor unit can be divided into sections, making it easier to move, deliver, and install even in tight spaces.

Deliver the Comfort Through Entire House

Panasonic ducted systems look very discreet and have been designed with flexibility in mind, which is extremely helpful when designing a system for your home, and also makes installation much easier. A Panasonic ducted air conditioner will provide years of comfort for you and your family, and it will add value to your home as ducted air conditioning is a highly desirable feature for home buyers.

Heat and Cool Each Room Individually Through Zoning

With individual zones for your home’s ducted air-conditioning system, everyone can enjoy their own airflow. Save on energy and running costs by turning off the airflow when rooms aren’t in use..

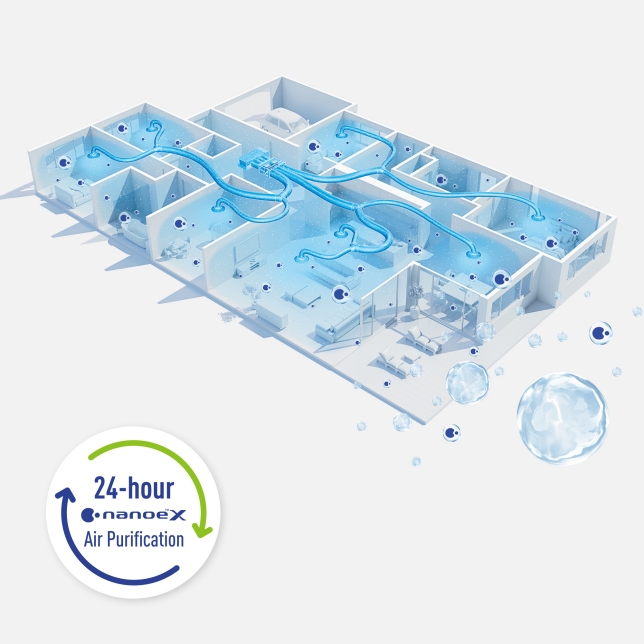

24-hour nanoe™ X Air Purification

Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.

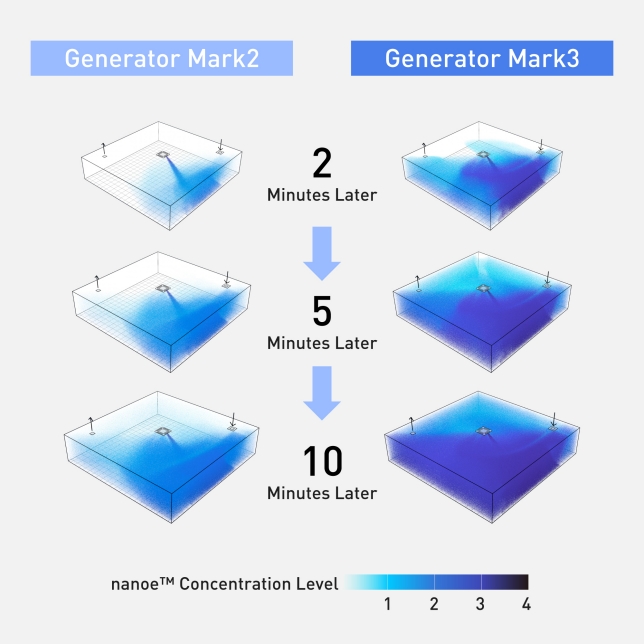

Higher Concentration, Even in Large Space

The amount of hydroxyl radicals generated increased 100 times, compared to the original nanoe™, which achieves greater effectiveness even in large spaces of 112 m².

Conditions of the simulation ･Room size: 112 m² ･Room height: 2.4 m ･Inspection model: 4-Way Cassette ･Position of IDU: Centre
Note: The result is based on the conditions for the simulation and it may differ from the concentration measured in an actual room. nanoe™ particles are extremely tiny in nano-meter size. They cannot be seen, so the concentration image is solely for illustrative purposes.

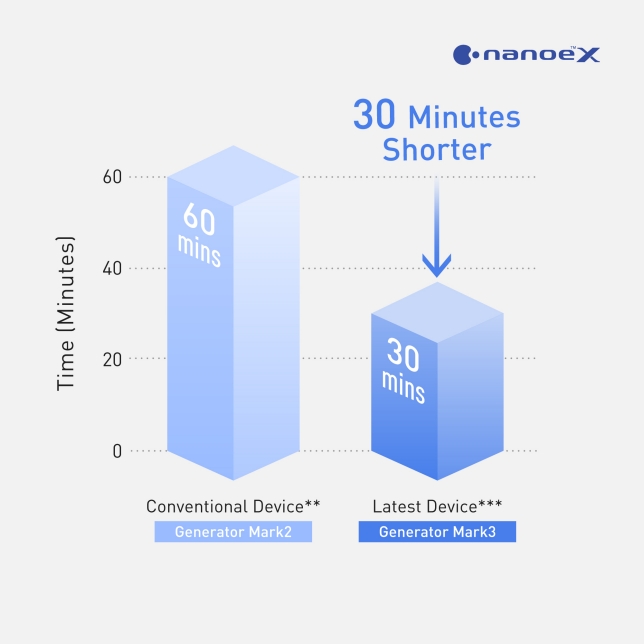

Effective at Eliminating Odours in Only 30 Minutes

The nanoe X Generator Mark3 reduces odours by as much as 1.8 levels* in just 30 minutes. This is half the time required to achieve the same effect compared to the conventional nanoe X Generator Mark 2.

*A 1.8 level decrease in odour intensity is equivalent to a reduction of 95% or more. [Odour intensity] 5: Very strong odour, 4: Strong odour, 3: Easily detectable odour, 2: Weak, recognisable odour (cognitive threshold concentration), 1: Barely detectable odour (detection threshold concentration), 0: No odour

Note: The test result is obtained using a 4-Way Cassette. **Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark2 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 60 minutes (L19YK032-01) ***Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P160U6 equivalent tester equipped with a nanoe X Generator Mark3 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 30 minutes (R21HM003-0)

Benefit from nanoe™ X Even with Long, Curved Ductwork

Maintain quality air 24-hours a day by turning on nanoe™ X using the Combined with the strong static pressure, this model ensures pristine nanoe™ X air travels unaffected, even through multiple duct shapes at lengths of 10 meters, as well as making them ideal for use in larger spaces.

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.

Smart Management of Power Consumption

Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.

Note: CZ-CAPWFC2 External WLAN Adaptor or CZ-RTC6WBLW2/6BLW2 are required per unit.

Wired Remote Controller

Besides Smart Control CONEX, conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.

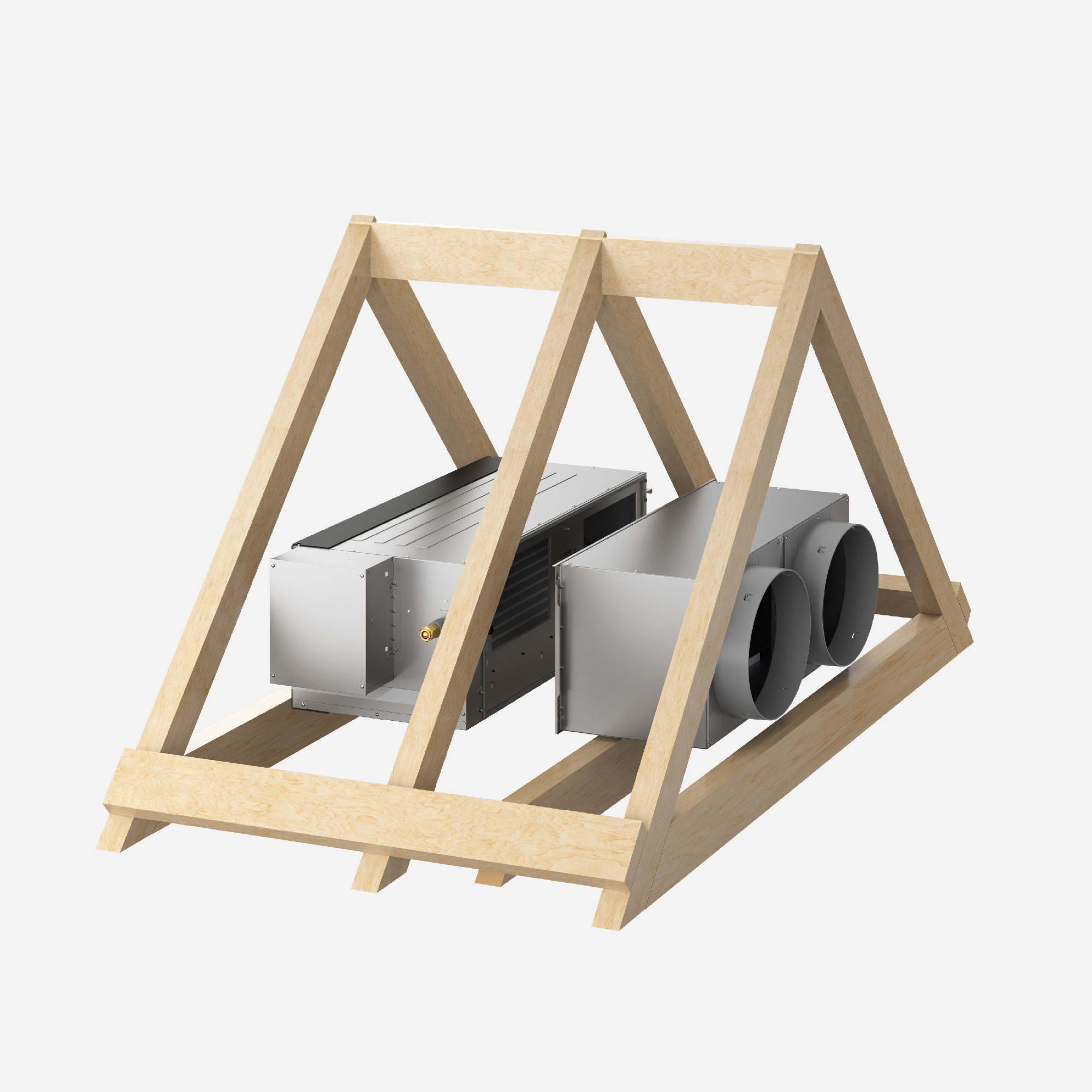

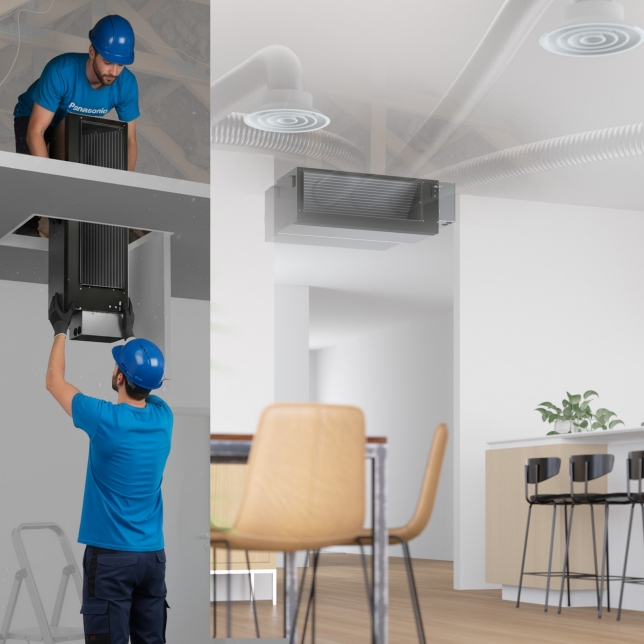

Optimized for Roof Truss Installation

Panasonic Splittable Ducted offers flexible installation in tight ceiling spaces, ideal for both renovations and new homes.

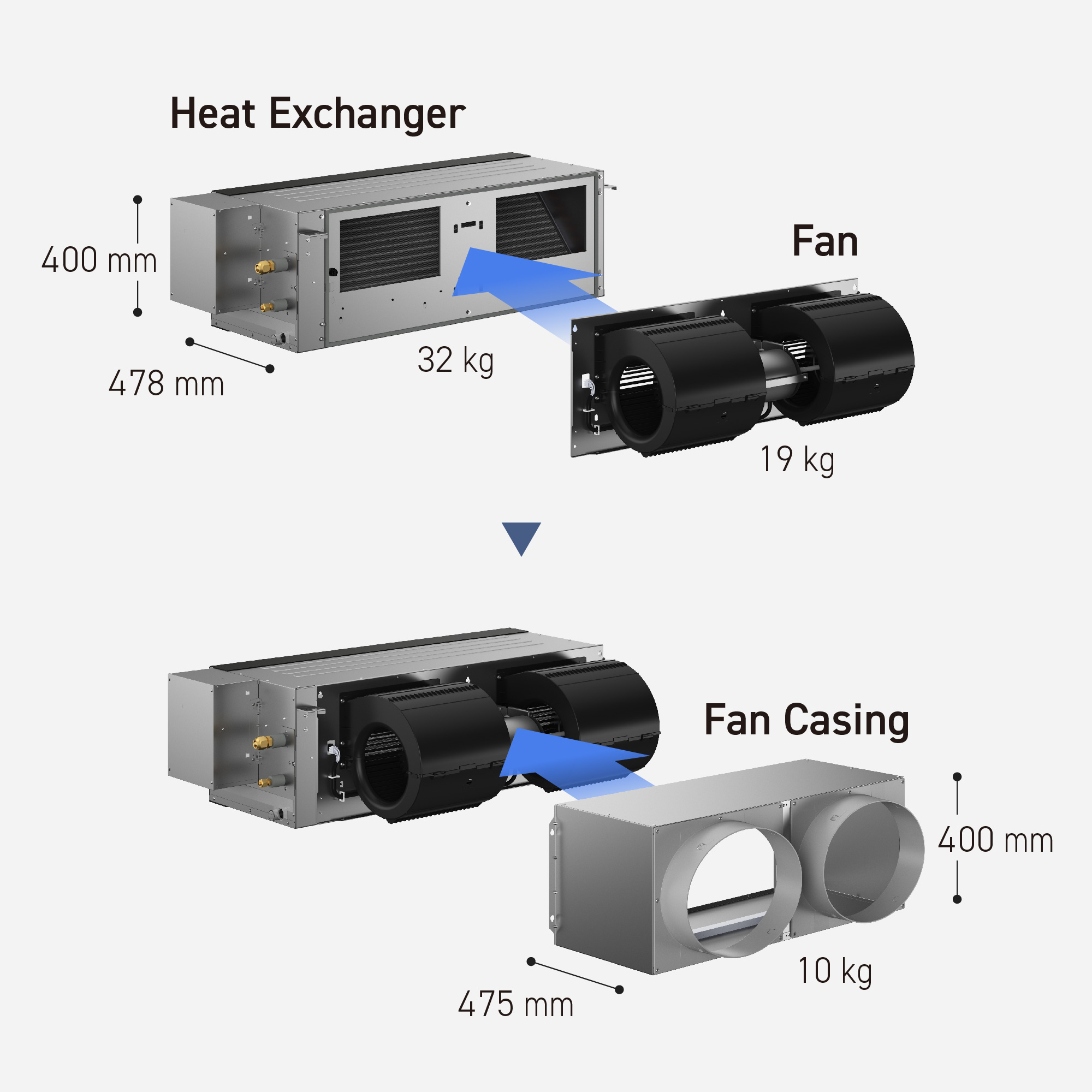

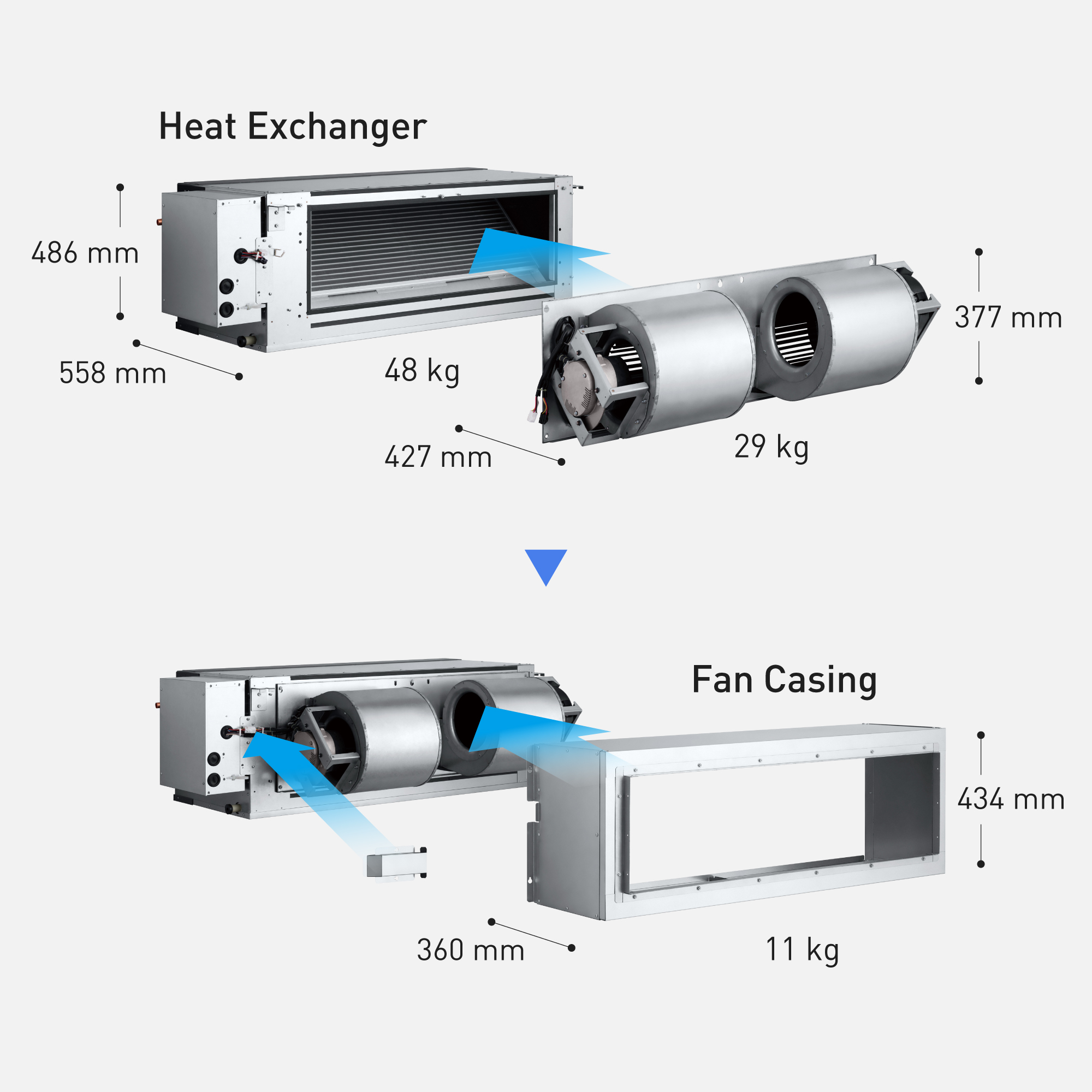

Splittable Chassis Design

Assembly takes three easy steps, even in limited spaces.

Note: Images are for the 16.0 kW model.

Splittable Chassis Design

Assembly takes three easy steps, even in limited spaces.

Note: Images are for the 22.4 kW model.

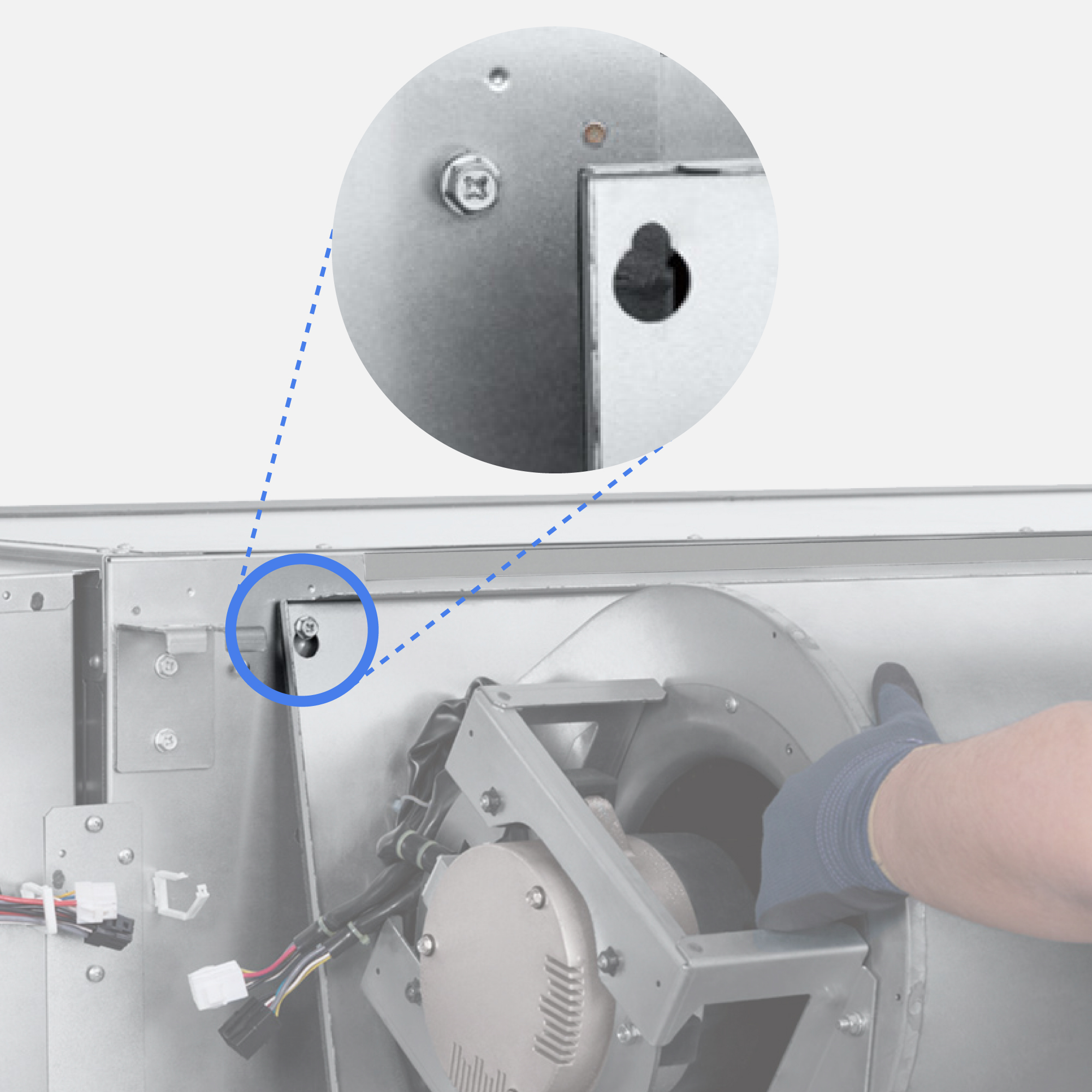

Bell Shaped Keyhole for Weight Support

Part of the keyhole is newly designed with a bell shape to reduce the burden of installation. It also enables temporary attachment.

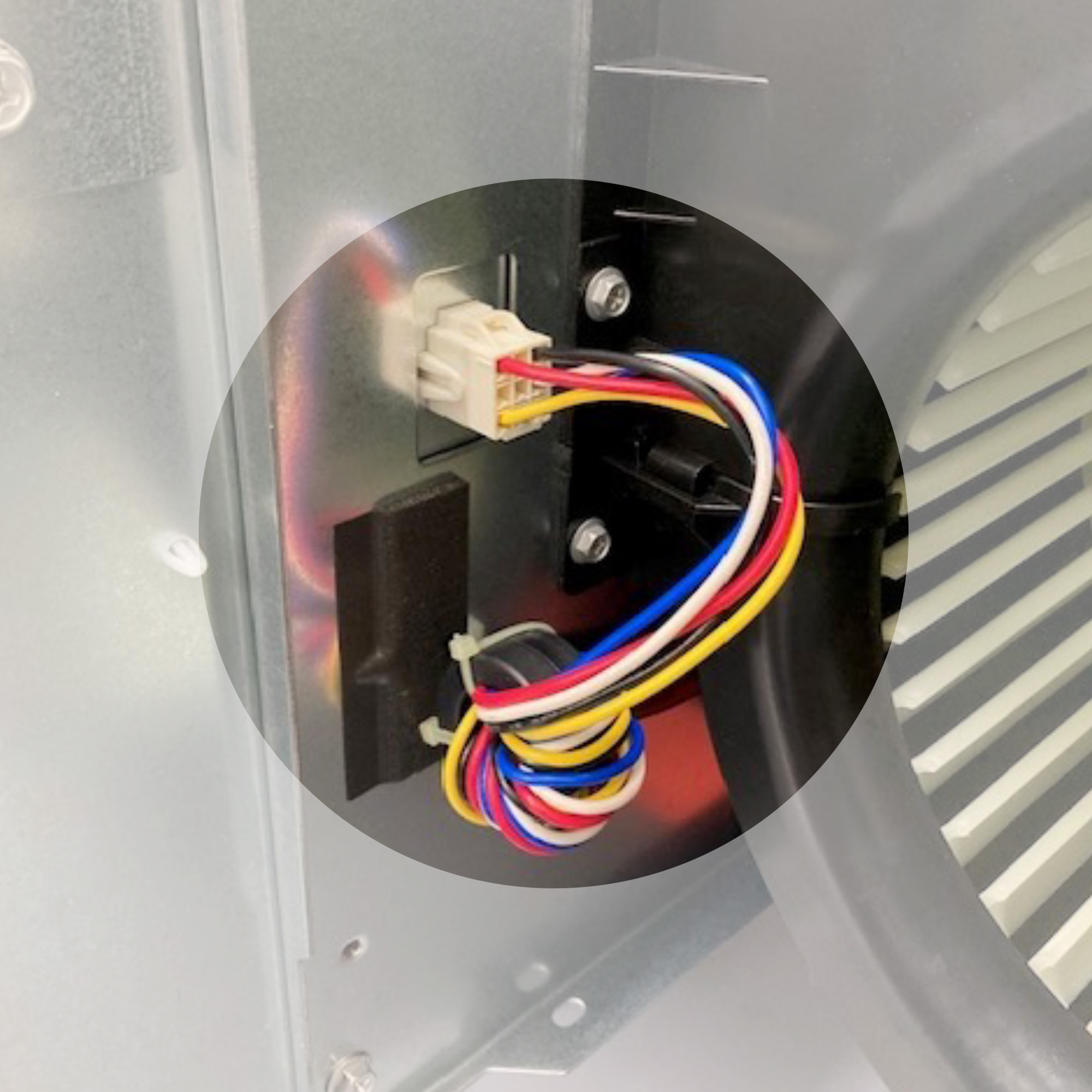

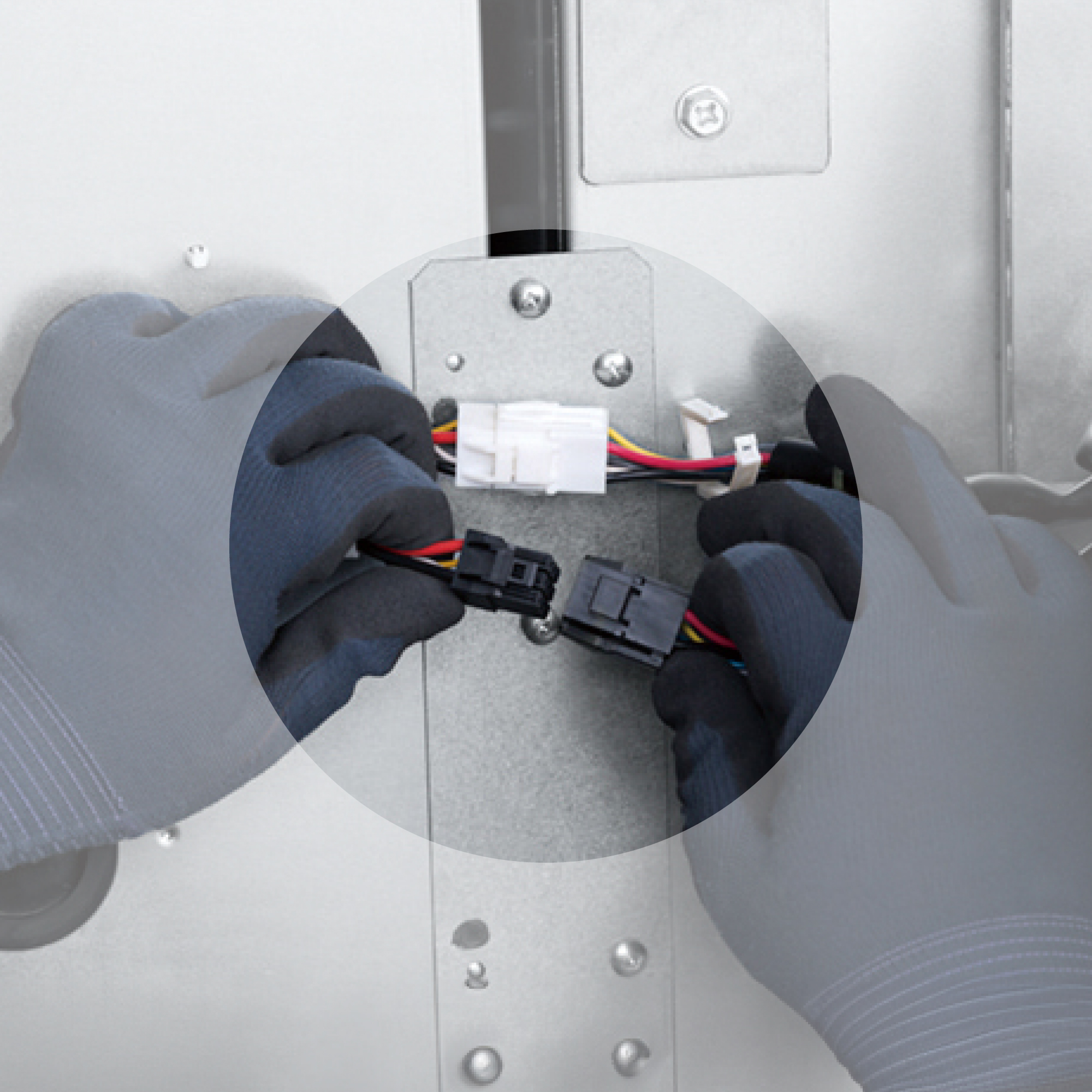

Single Wire Connector

The single wire connector offers fast, hassle-free installation.

Note: For the 6 .0 – 16.0 kW model.

2 Wire Connectors

With only 2 wire connectors,installation has become much easier and faster.

Note: For the18.0 – 22.4 kW model.

R32 Inverter NX Series Deluxe

R32 Inverter NX Series Deluxe delivers superior energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units guarantee powerful operation even in extremely hot environments.

R32 Inverter NX Series Compact Model

R32 Inverter NX Series Compact Model delivers energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units ensure powerful operation.
