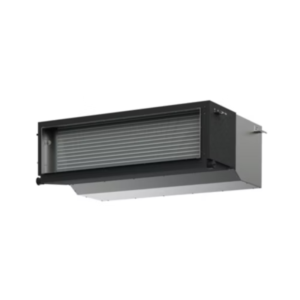

Product Description
R32 Inverter NX Series High Static Ducted offer improved design flexibility for extended duct layouts thanks to their increased external static pressure. A new IoT remote controller also provides greater accessibility and convenience.
- Description
- Specifications
- Documents
Description
Features
| Capacity (kW) | Cooling | 6.0 | 7.1 | 10.0 | 12.5 | 14.0 | 16.0 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Heating | 6.0 | 7.1/8.0 | 10.0/11.2 | 12.5/14.0 | 14.0/16.0 | 18.0 | |||||
| Phase | 1Ø Phase | 1Ø Phase | 1Ø Phase | 3Ø Phase | 1Ø Phase | 3Ø Phase | 1Ø Phase | 3Ø Phase | 1Ø Phase | 3Ø Phase | |
| Indoor Unit |
|
S-60PE3R | S-71PE3R | S-100PE3R | S-125PE3R | S-140PE3R | S-160PE3R | ||||
| Outdoor Unit (Deluxe) |
|
U-60PZ3R5 | U-71PZ3R5 | U-100PZ3R5 | U-100PZ3R8 | U-125PZ3R5 | U-125PZ3R8 | U-140PZ3R5 | U-140PZ3R8 | U-160PZH3R5 | U-160PZH3R8 |
| Outdoor Unit (Compact) |
|
U-60PZ4R5 | U-71PZ4R5 | U-100PZ4R5 | U-100PZ4R8 | U-125PZ4R5 | U-125PZ4R8 | U-140PZ4R5 | U-140PZ4R8 | – | – |

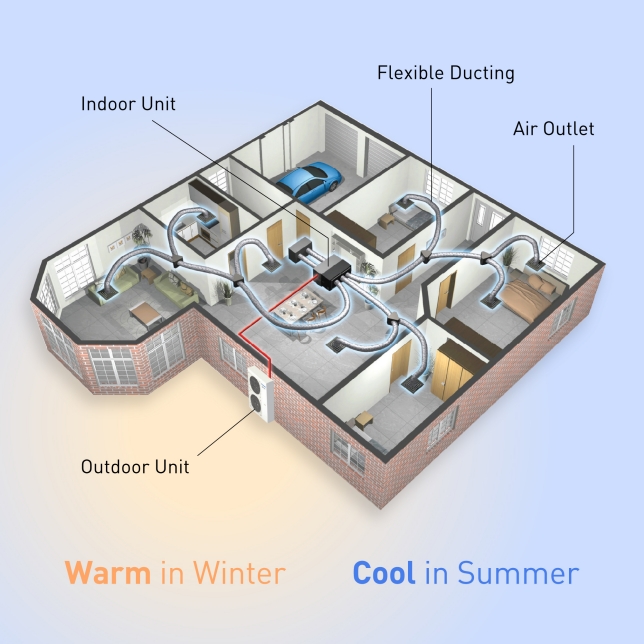

Ducted Air Conditioning. Year Round Comfort
Deliver the Comfort Through Entire House
Panasonic ducted systems look very discreet and have been designed with flexibility in mind, which is extremely helpful when designing a system for your home, and also makes installation much easier. A Panasonic ducted air conditioner will provide years of comfort for you and your family, and it will add value to your home as ducted air conditioning is a highly desirable feature for home buyers.

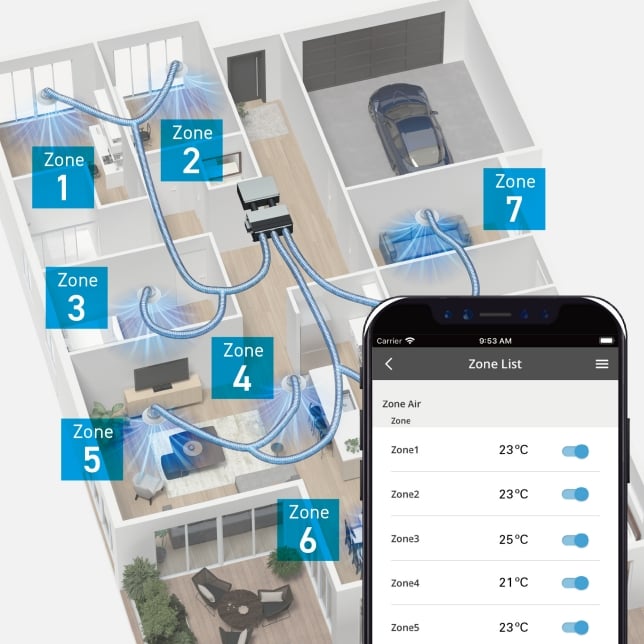

Heat and Cool Each Room Individually Through Zoning
With individual zones for your home’s ducted air-conditioning system, everyone can enjoy their own airflow. Save on energy and running costs by turning off the airflow when rooms aren’t in use..
More Efficient Air Protection with nanoe X Generator Mark2
24-hour nanoe™ X Air Purification
Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.

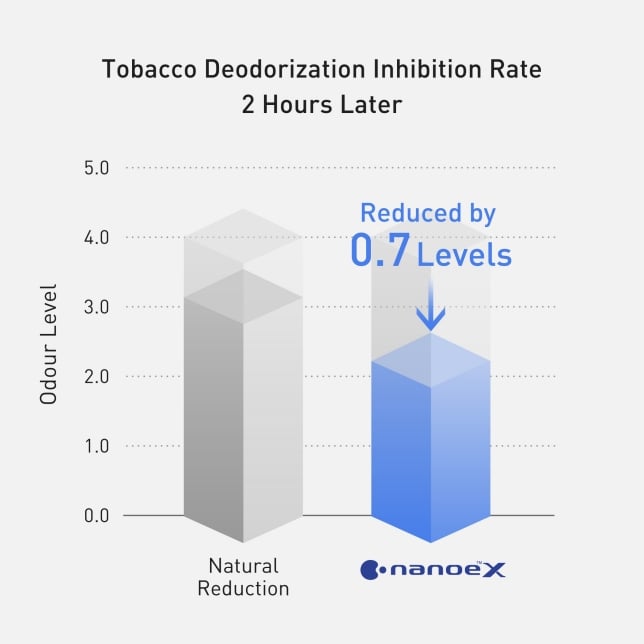

nanoe™ X Effectiveness Proven in Large Space
The nanoe™ X fan mode reduced adhered odour by 0.7 levels* compared to natural reduction after 2 hours of exposure.
*A 1 level reduction in odour intensity is equivalent to a reduction of 90%. Note: (1) Testing method: Verified using the six-level odour intensity scale method in an approximately 378 m³ sized test room (2) Inhibition method: nanoe X Generator Mark2 released (3) Test substance: Surface-attached cigarette smoke odour (4) Test result: Odour intensity reduced by 0.7 levels in 2 hours (KT-19-015089-1)

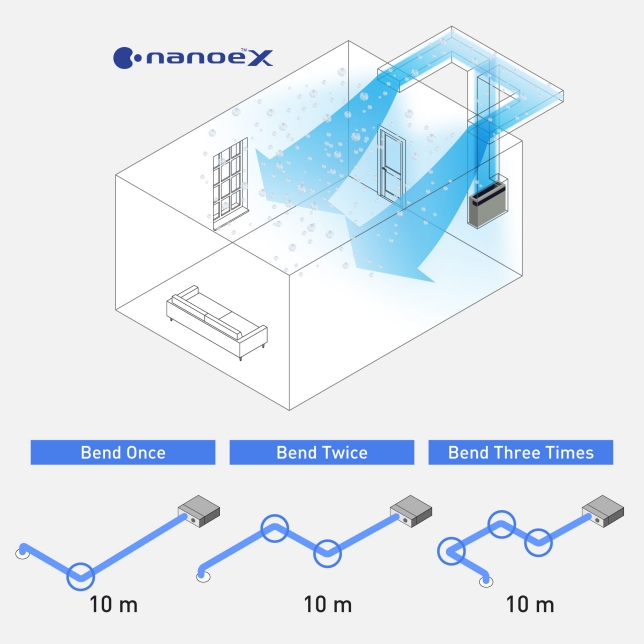

Benefit from nanoe™ X Even with Long, Curved Ductwork
Combined with the strong static pressure, this model ensures pristine nanoe™ X air travels unaffected, even through multiple duct shapes at lengths of 10 meters, as well as making them ideal for use in larger spaces.

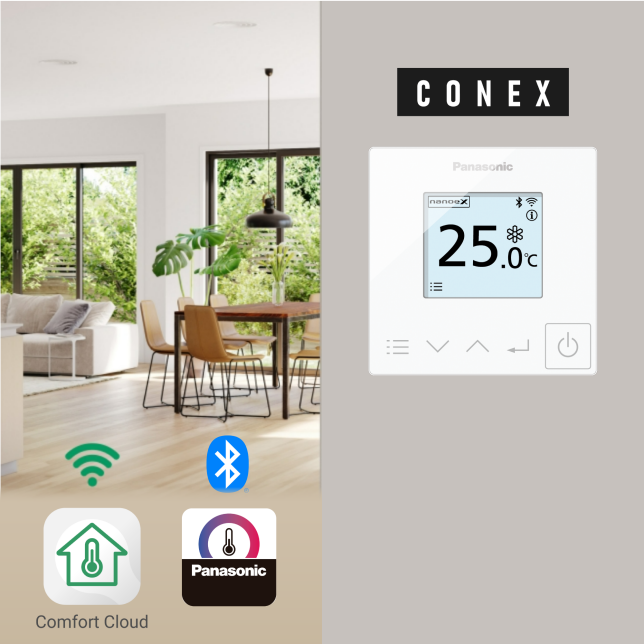

Smart Power Saving with IoT
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs
CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
Note: A wireless remote controller is provided with the product.

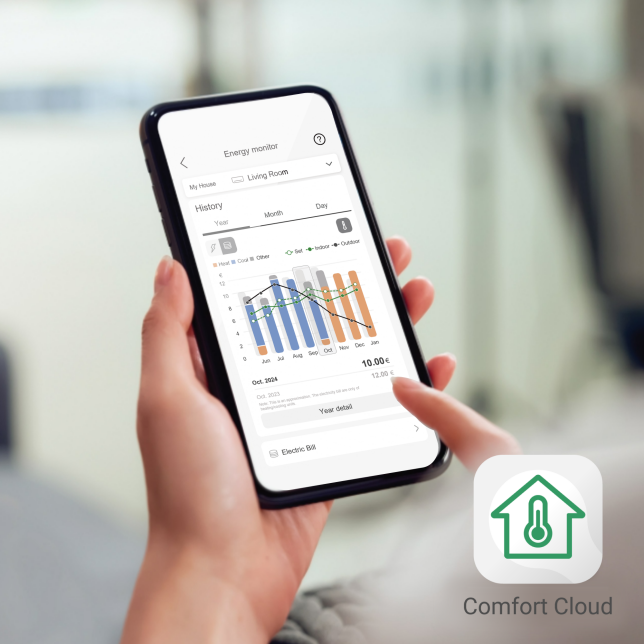

Smart Management of Power Consumption
Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.
Note: CZ-CAPWFC2 External WLAN Adaptor or CZ-RTC6WBLW2/6BLW2 are required per unit.

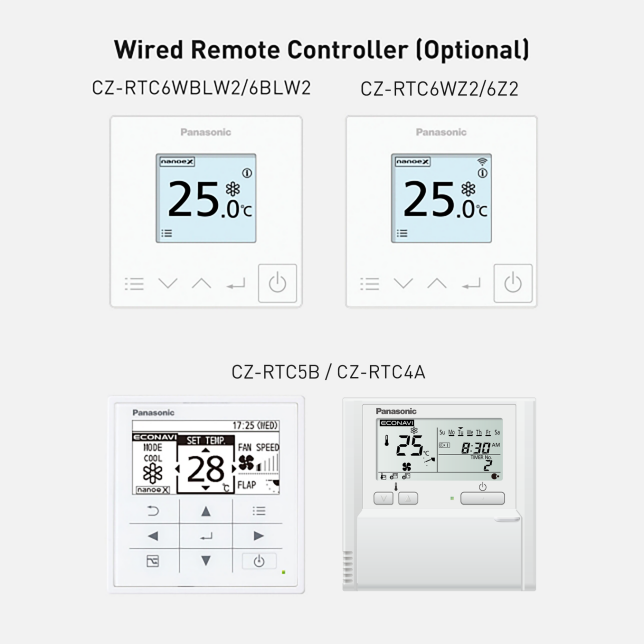

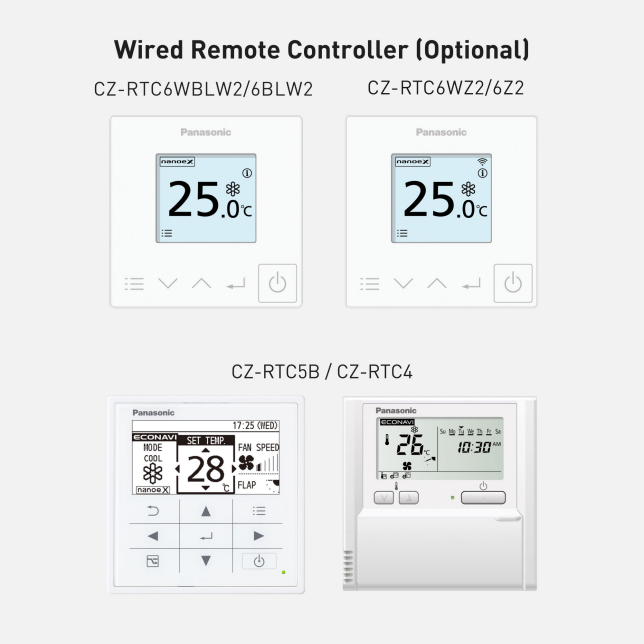

Wired Remote Controller
Besides Smart Control CONEX, conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.
Flexible Installation

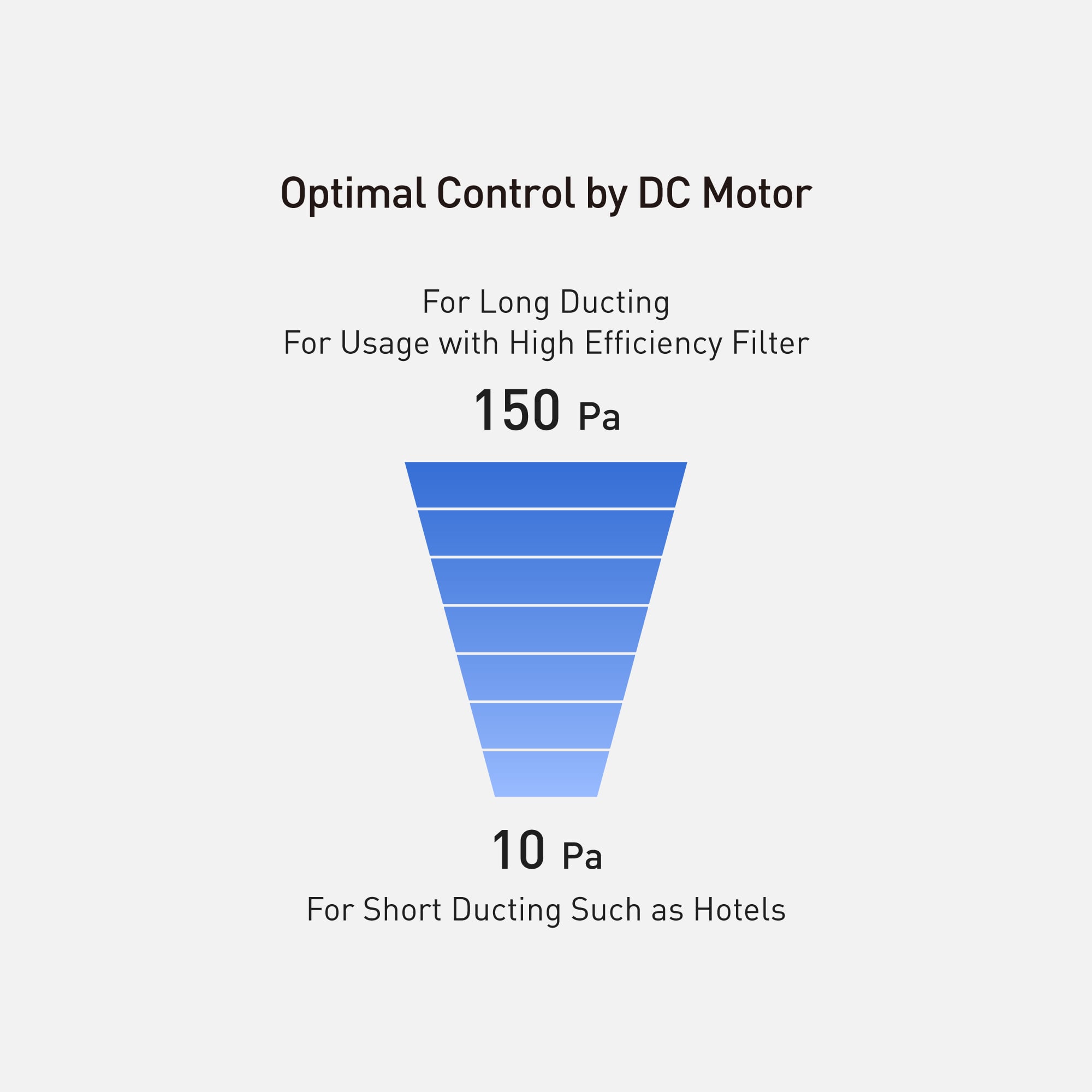

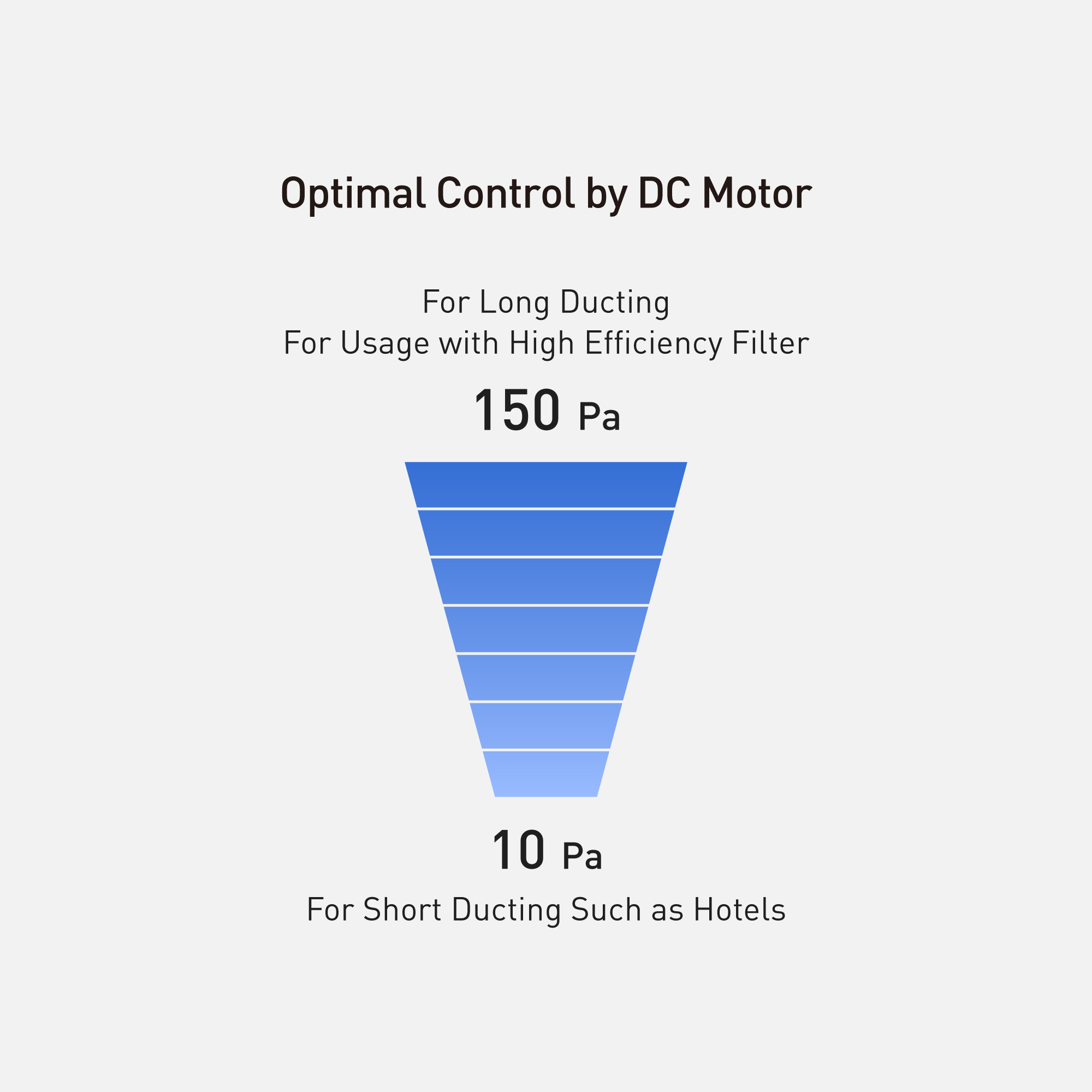

Variable External Static Pressure Control (10-150 Pa)
Optimal airflow set-up is possible depending on ducting design and conditions.
Note: Please refer to technical databook for detail.

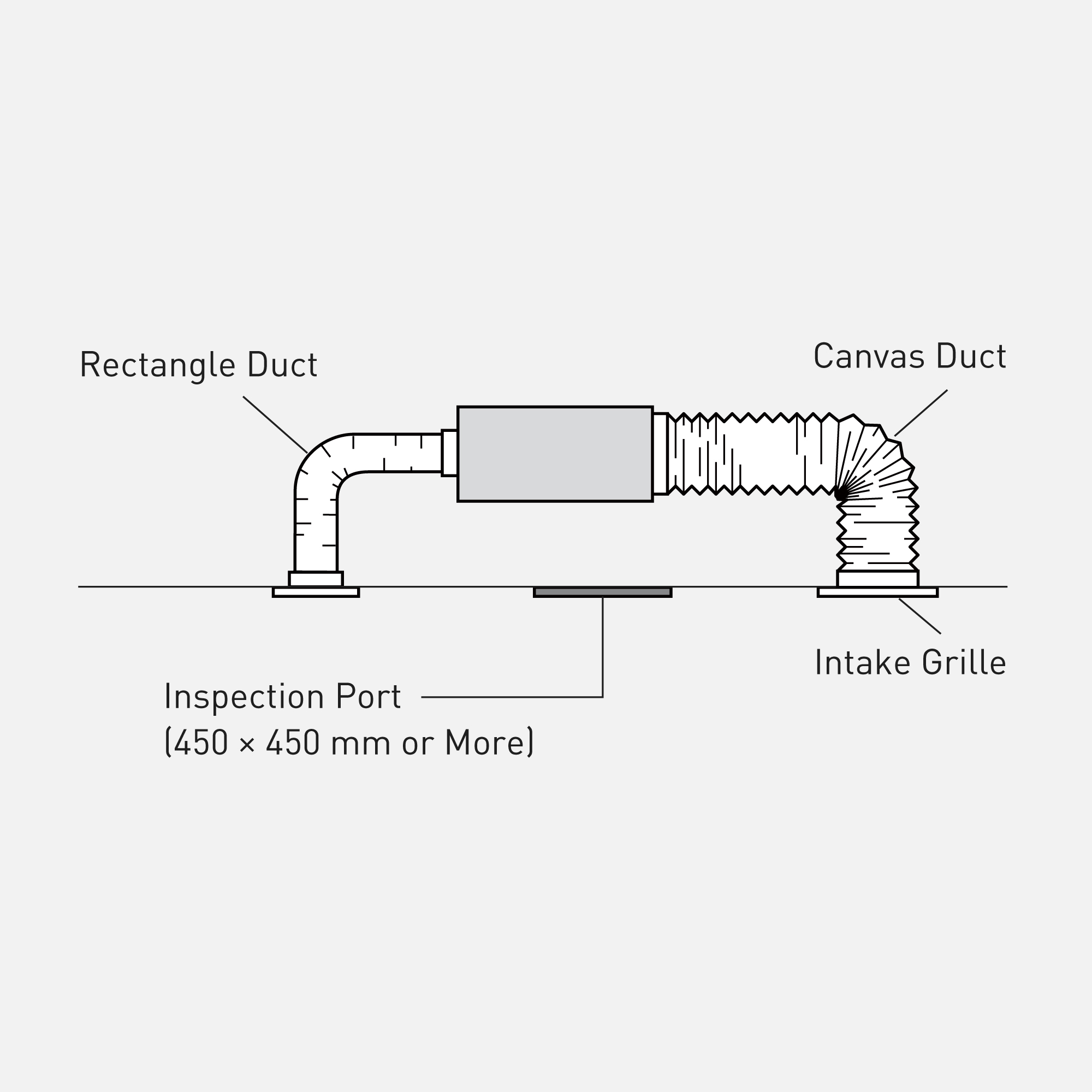

Installation of Inspection Port Necessary
An inspection port (450 x 450 mm or more) is required at the lower side of the indoor unit body (field supply).
Combination
R32 Inverter NX Series Deluxe
R32 Inverter NX Series Deluxe delivers superior energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units guarantee powerful operation even in extremely hot environments.
R32 Inverter NX Series Compact Model
R32 Inverter NX Series Compact Model delivers energy efficiency through its energy-saving performance and design. With the ability to fit into any space or layout, these outdoor units ensure powerful operation.

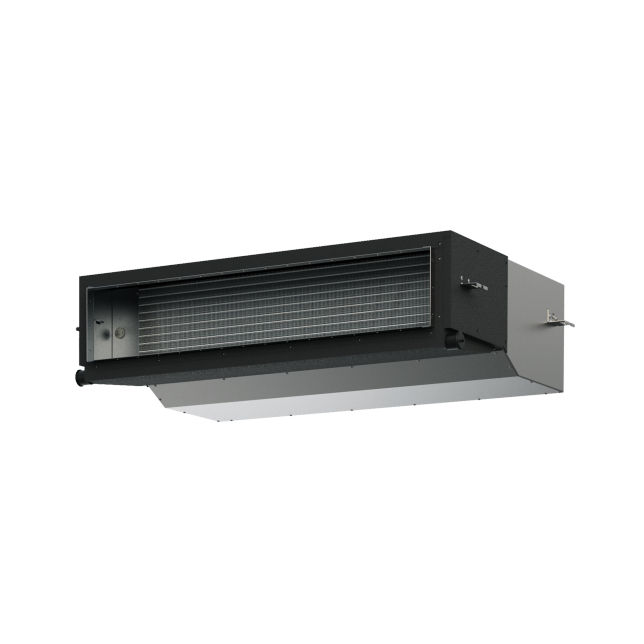

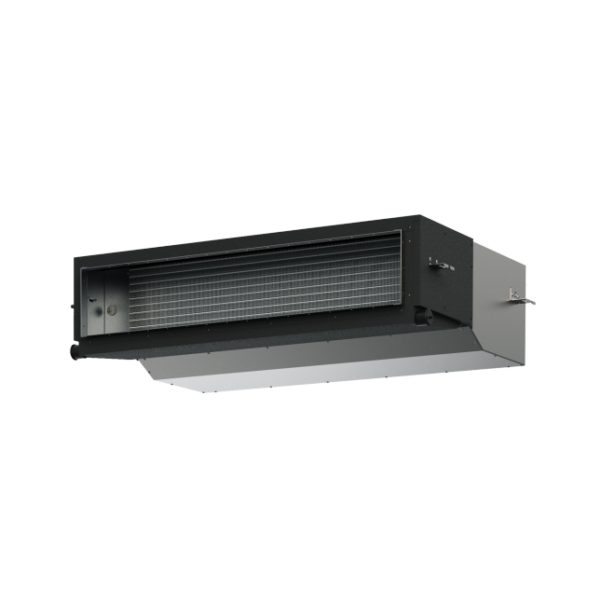

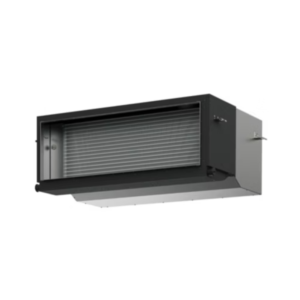

S-60PE3R
nanoe™ X patented air purification technology
nanoe™ X effectiveness proven in large space by 3rd party
CONEX: A next-generation remote control
Design flexibility thanks to high static pressure and large air volume
Discharge air temperature control to reduce cold drafts during heating operation
Configurable air temperature control
Technical Specifications
| S-60PE3R | S-71PE3R | S-100PE3R | S-125PE3R | S-140PE3R | S-160PE3R | |
|---|---|---|---|---|---|---|
| Air Volume (Cooling) (H/M/L) | 367/334/267 Ls | 501/434/367 Ls | 668/584/484 Ls | 835/768/601 Ls | 1,002/835/701 Ls | 1,002/835/701 Ls |
| Air Volume (Heating) (H/M/L) | 367/334/267 Ls | 501/434/367 Ls | 668/584/484 Ls | 835/768/601 Ls | 1,002/835/701 Ls | 1,002/835/701 Ls |
| External Static Pressure | 70 Pa (10-150 Pa) | 100 Pa (10-150 Pa) | 100 Pa (10-150 Pa) | 100 Pa (10-150 Pa) | 100 Pa (50-150* Pa) | 100 Pa (Max 150 Pa) |
| Sound Pressure Level (Cooling) (H/M/L) | 43/41/40 dB (A) | 45/44/43 dB (A) | 48/46/44 dB (A) | 49/47/45 dB (A) | 51/49/47 dB (A) | 51/49/47 dB (A) |
| Sound Pressure Level (Heating) (H/M/L) | 43/41/40 dB (A) | 45/44/43 dB (A) | 48/46/44 dB (A) | 49/47/45 dB (A) | 51/49/47 dB (A) | 51/49/47 dB (A) |
| Sound Power Level (Cooling) (H/M/L) | 60/58/57 dB | 62/61/60 dB | 70/68/66 dB | 71/69/67 dB | 73/71/69 dB | 73/71/69 dB |
| Sound Power Level (Heating) (H/M/L) | 60/58/57 dB | 62/61/60 dB | 70/68/66 dB | 71/69/67 dB | 73/71/69 dB | 73/71/69 dB |
| Current (Cooling) (rated) | – | – | – | – | – | 2.41/2.38 A |
| Current (Heating) (rated) | – | – | – | – | – | 2.41/2.38 A |
| Dimension | H290 x W1,200 x D700 mm | H360 x W1,200 x D700 mm | H360 x W1,200 x D700 mm | H430 x W1,200 x D700 mm | H430 x W1,200 x D700 mm | H430 x W1,200 x D700 mm |
| Net Weight | 31 kg | 36 kg | 37 kg | 41 kg | 50 kg | 50 kg |
| Number of Fan Speeds | 3 | 3 | 3 | 3 | 3 | 3 |
| Drain Piping | VP-25 mm | VP-25 mm | VP-25 mm | VP-25 mm | VP-25 mm | VP-25 mm |
| Note | *Not adjustable, refer to “Indoor Fan Performance” section of technical data. |
