Product Description

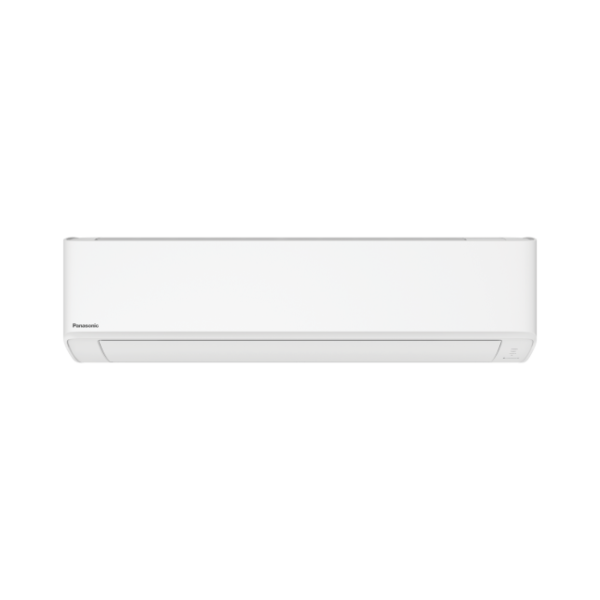

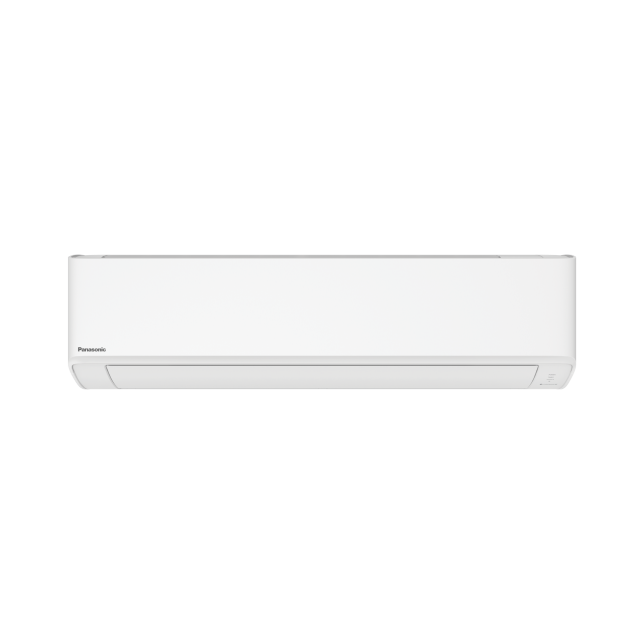

Panasonic Developer RZ Series (AKR) air conditioner features an anti-bacterial filter to ensure clean air is delivered throughout the space. POWERFUL Mode offers instant cooling with just a push of a button. AEROWINGS directs airflow further across the room. Enjoy cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device.
- Description
- Specifications
- Documents
- Case Studies
Description
Stay Comfortable All Year Round
Panasonic Aero Z Series Panasonic High Wall Developer RZ Series CS-RZ25AKRW air conditioner offers convenient comfort for every space, keeping you cool during the warm season and letting you enjoy warmth during the cooler season. Ensuring everyone’s comfortable all year round.
Purify Your Home All Day Long with 24-hour nanoe™ X Air Purification
Panasonic Developer RZ Series CS-RZ25AKRW air conditioner offers convenient comfort for every space, keeping you cool during the warm season and letting you enjoy warmth during the cooler season. Ensuring everyone’s comfortable all year round.

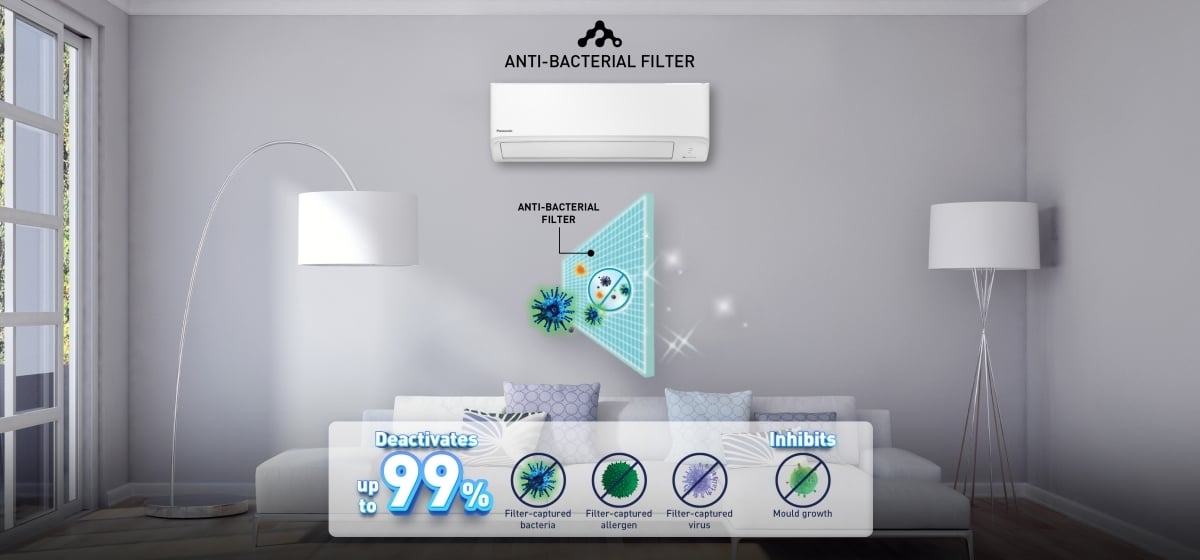

Filters Bacteria and Viruses for Clean, Healthy Air
The filter combines anti-bacterial¹, anti-virus², anti-allergen³ and anti-mould⁴ protection, ensuring that clean air is delivered to the room. It effectively deactivates up to 99% filter-captured bacteria, allergens and viruses, while also inhibiting mould growth.
¹ Test Organisation: Boken Quality Evaluation Institute •Test Report No: 100424591 and 100424592 •Bacteria: Staphylococcus aureus NBRC 12732 and Escherichia coli NBRC 3972
² Test Organisation: Osaka Prefectural Institute of Public Health •Test Report No: 313360397 •Virus: Influenza A (H3N2) Hong Kong
³ Test Organisation: Shinshu University •Allergen: Cedar Pollen Allergen Cry j1
⁴ Test Organisation: Boken Quality Evaluation Institute •Test Report No: 0003663 •Mould: Aspergillus niger ATCC 6275
Connect & Control Your Air Conditioners Anywhere, Anytime
Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.
Advanced Smart Control with Voice Assistant Compatibility
Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.
Connect & Control Your Air Conditioners Anywhere, Anytime
With the built-in Wi-Fi and Panasonic Comfort Cloud App, connect and control multiple air conditioning units from anywhere, at home or away.
Advanced Smart Control with Voice Assistant Compatibility
Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.
Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
*Comparison of ECO mode & normal mode by using 3.5kW Inverter Model. Not applicable for multi-split systems.
Comfort Cooling Environment for Your Needs

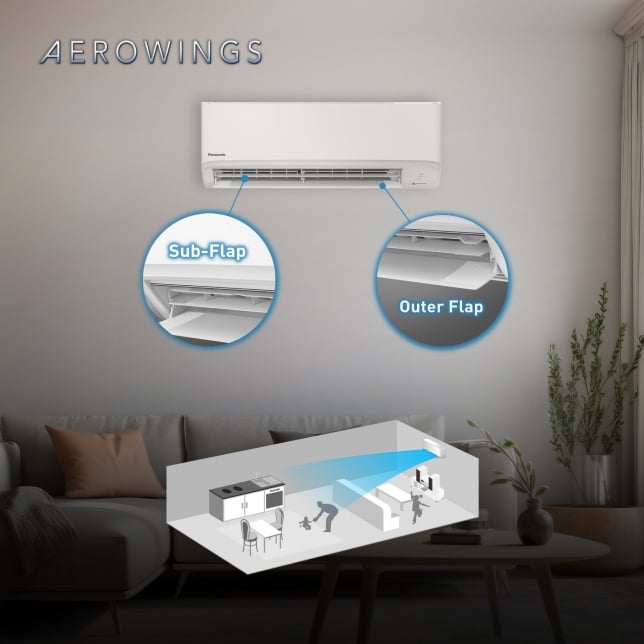

Faster and Further Airflow with AEROWINGS
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
Instant Powerful Cooling with a Push of a Button
POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.
Calm and Peaceful Environment with Quiet Mode
Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.
Sleep Better at Night
A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.
Superior Quality & Reliability
Panasonic is uncompromising in product quality, durability, reliability and safety. We lead the market in many of the most extreme climates in the world for a good reason. Our products are engineered to provide uninterrupted cooling or heating when you need it most.
Anti-bacterial filter delivers quality indoor air to your spaces
Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)
AEROWINGS concentrates cool air for further and faster airflow across the room
POWERFUL Mode lets you enjoy instant powerful cooling during start-up
ECO Mode with A.I. control intelligently balances energy savings and comfort
Energy efficiency with Inverter technology and R32 refrigerant
See All Specs
| CS-RZ25AKRW | |
|---|---|
| Indoor Unit (230V / 1 Phase / 50 Hz) | CS-RZ25AKRW |
| Outdoor Unit | CU-RZ25AKR |
| Cooling Capacity (min-max) (kW) | 2.50 (0.95-3.70) kW |
| Cooling Capacity (min-max) (Btu/h) | 8,530 (3,240-12,600) Btu/h |
| Cooling Air Flow (Indoor) | 188 L/s |
| Dehumid (L/h) | 1.5 L/h |
| Cooling Running Current (A) | 2.55 A |
| Cooling Power Input (min-max) (kW) | 0.58 (0.20-1.20) kW |
| Cooling AEER/EER | 4.28 W/W / 4.31 W/W |
| Star Rating Residential – Cooling (Hot/Avg/Cold) | 4.5 / 4.0 / 4.0 TCSPF |
| Star Rating Commercial – Cooling (Hot/Avg/Cold) | 5.5 / 6.0 / 7.0 TCSPF |
| Heating Capacity (min-max) (kW) | 3.00 (0.90-4.40) kW |
| Heating Capacity (min-max) (Btu/h) | 10,200 (3,070-15,000) Btu/h |
| Heating Air Flow (Indoor) | 200 L/s |
| Heating Running Current (A) | 2.9 A |
| Heating Power Input (min-max) (kW) | 0.65 (0.19-1.29) kW |
| Heating ACOP/COP | 4.57 W/W / 4.62 W/W |
| Star Rating Residential – Heating (Hot/Avg/Cold) | 3.5 / 3.0 / 2.5 HSPF |
| Indoor Sound Pressure Level (C/H) (H/L/Q-Lo) | 40/25/19 | 40/27/21 dB(A) |
| Outdoor Sound Pressure Level (C/H) (H/Q-Lo) | 48/43 | 49/44 dB(A) |
| Indoor Unit Dimensions (H x W x D) | 290 mm x 779 mm x 209 mm |
| Indoor Unit Net Weight | 8 kg |
| Outdoor Unit Dimensions (H x W x D) | 542 mm x 780 mm x 289 mm |
| Outdoor Unit Net Weight | 25 kg |
| Refrigerant Type | R32 |
| Refrigerant Pipe Diameter (Liquid/Gas) | ø 6.35 mm (1/4″) / ø 9.52 mm (3/8″) |
| Pipe Extension (min-max) / Max Elevation | 3m – 20m / 15m |
| Comfort Features | Powerful, ECO A.I., Inverter, Sleep, Quiet, Soft Dry, Auto Changeover |
| Airflow Control | Up & Down (Auto), Horizontal (Manual) |
| Convenience Features | Wi-Fi (Optional), DRED, 24H Dual Timer, Blue Fin Condenser |
| Note | Please read the Installation Instructions carefully before installing the unit. Specifications are subject to change without prior notice. |
