Product Description
The wall-mounted VL100 Lossnay Fresh Air Energy Recovery Single Room Ventilation unit provides energy efficient ventilation to ensure individual rooms have a constant supply of healthy, fresh air. And because the unit is ductless in design, it means the system is ideal for homes and buildings where there is no roof space to install a heat exchanger.
- Description
- Specifications
- Downloads
- Support
Description
Single Room Ventilation and Energy Recovery
Balanced pressure ventilation solution for specific areas up to 88m². Lossnay recovers energy to pre-warm or pre-cool fresh air, minimising moisture build-up for a healthier indoor environment without needing ceiling space.

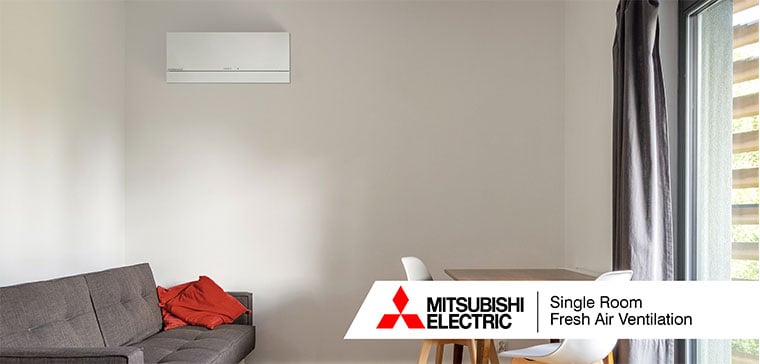

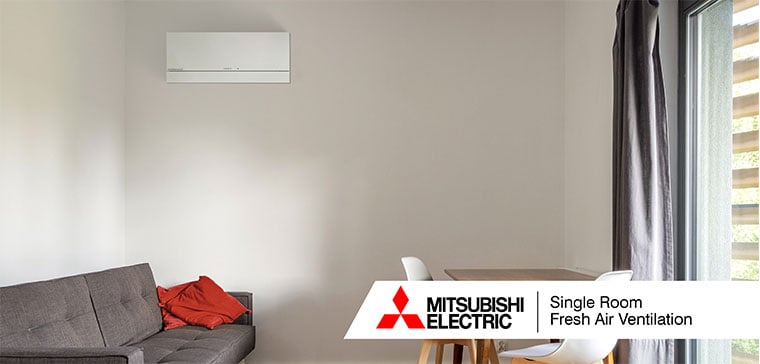

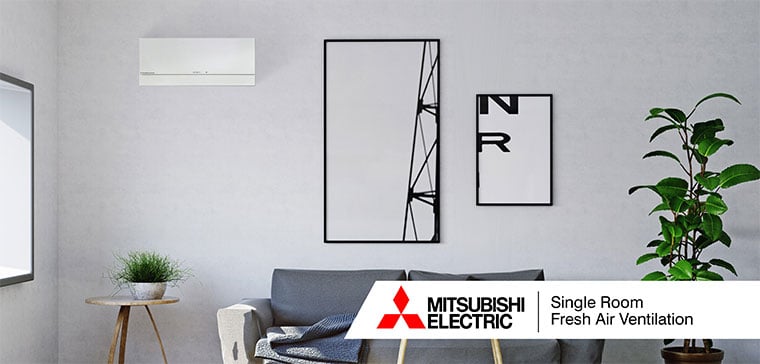

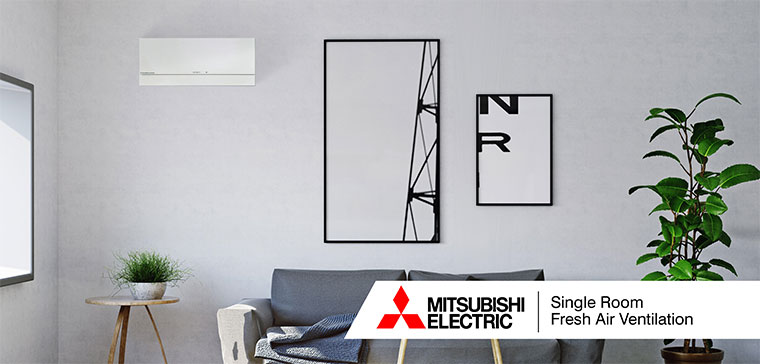

Wall Mounted Lossnay Solution
Ductless design ideal for homes with no roof space. Drilling only two small holes for installation, it provides 80% heat exchange efficiency and ultra-quiet operation from 25dB.
Patented Heat Recovery Core
The secret to energy efficiency. It recovers energy from extracted stale air to pre-condition incoming fresh air, reducing the load on your heating and cooling appliances.
Healthier Indoor Air Quality
Reduces high levels of CO2 and moisture-laden air that causes mould. Provides a constant supply of filtered outdoor air for better concentration and wellbeing.

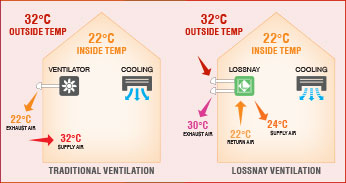

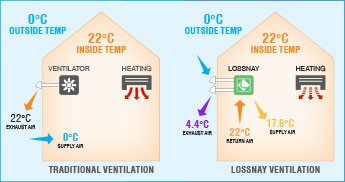

Year Round Energy Savings
In winter, it pre-heats cold outdoor air. In summer, it lowers the temperature of hot outdoor air before bringing it inside, maintaining comfort all year long.
Who Can Benefit?
- Small New Builds & Tiny Homes: Solves moisture and airflow issues in cabins, studios, and container offices.
- Renovated Spare Rooms: Perfect for home gyms or offices where ceiling space for ducting isn’t available.
- Rooms That Overheat: Purges summer heat without the noise or security risks of opening windows.
- Airtight Modern Homes: Replaces stale CO2-heavy air with fresh filtered air to prevent mould growth.
- Cost Effective Installation: STANDALONE solution that is easy to retrofit and reduces energy bills.
| Heat exchange system:Â Energy Recovery Ventilating System | |||
| Heat exchange element material:Â Semi-permeable treated core | |||
| Dimensions (WxDxH, mm):Â 620 x 200 x 265 | |||
| Weight:Â 7.5 kg | |||
| Power Supply:Â 230V +/- 10% / Single Phase / 50 Hz | |||
| Heat Recovery Ventilation Mode | |||
|---|---|---|---|
| Input Power (Fan Lo-Hi):Â 15 – 31W | |||
| Air Volume (Fan Lo-Hi):Â 16 – 29 l/s | |||
| Temperature exchange efficiency (Fan Lo-Hi):Â 80.0 – 73.0 % | |||
| Noise (Fan Lo-Hi):Â 25 – 37dBA | |||
| Notes | |||
| *:Â Total external static pressure maximum includes Return Air Fan. OA = Outside Air. RH = Return Humidity. | |||
| Note:Â Lossnay Ventilation Complies with Standards: S/NZS60335.2.80 and AS/NZS CISPR14.1 | |||

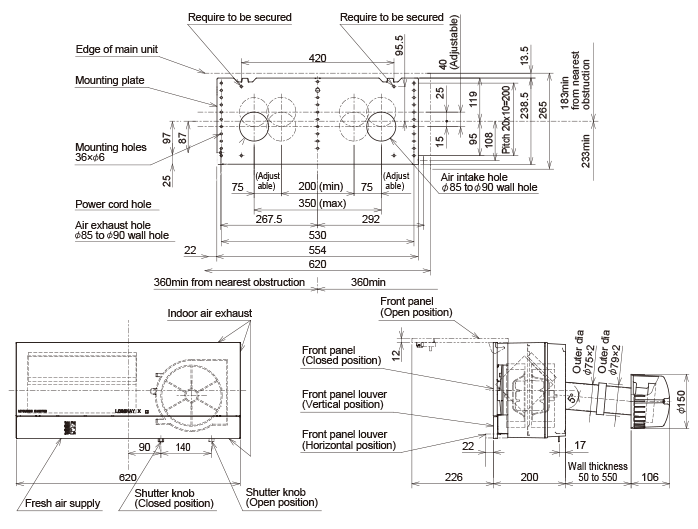

Dimenssion
VL-100EU5-E
