Product Description

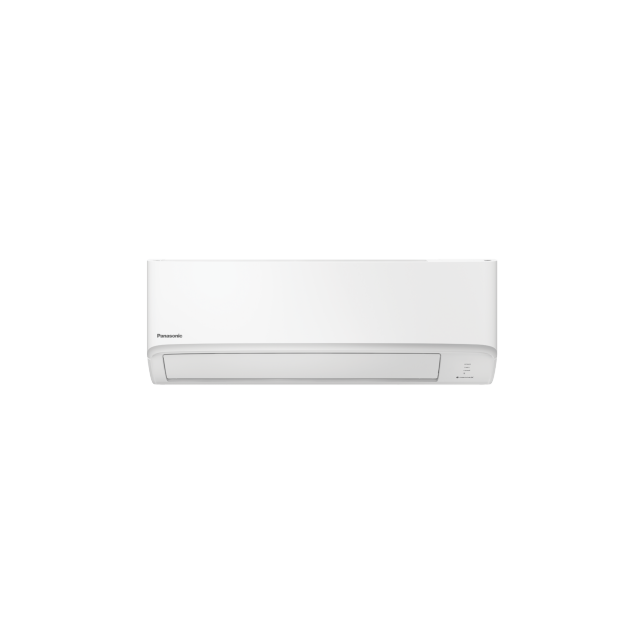

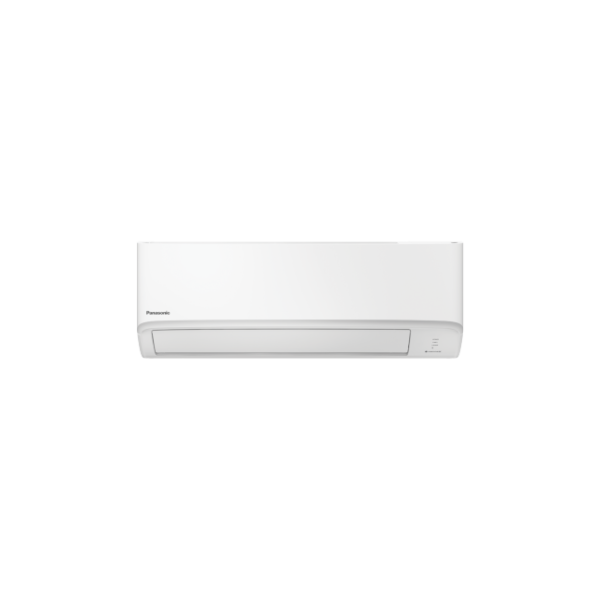

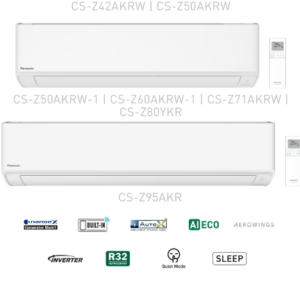

Panasonic Aero Z Series (AKR) wall-mounted split system air conditioner delivers energy efficient heating and cooling for your home. Aero series air conditioners feature nanoeâ„¢ X air purification technology that can be run independently 24 hours a day. The iAUTO-X function provides faster cooling from start-up while AEROWINGS deliver faster and further airflow across the room. Stay connected with built-in Wi-Fi and Panasonic Comfort Cloud App to manage your air conditioners from anywhere, anytime. Enjoy continuous comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.
- Description
- Specifications
- Documents
- Case Studies
Description
Stay Comfortable All Year Round
Panasonic Aero Z Series Panasonic Aero Z Series (AKR) wall-mounted split system air conditioner air conditioner offers convenient comfort for every space, keeping you cool during the warm season and letting you enjoy warmth during the cooler season. Ensuring everyone’s comfortable all year round.
Purify Your Home All Day Long with 24-hour nanoe™ X Air Purification
Breathe easy at home, all day long. Panasonic’s nanoe™ X technology continuously cleans and purifies your indoor air, even on surfaces and soft furnishings. nanoe™ X can be activated with or without heating/cooling function turned on, thereby saving you electricity. This purification technology keeps your living space feeling fresh and clean, creating a safe haven for you and your loved ones 24/7.
Breathe Cleaner, Live Better: The Benefits of nanoe™ X Air Purification
Active Air Purification with nanoe™ X
Known as nature’s detergent, hydroxyl radicals (also known as OH radicals) are natural reactive molecules seek to react with other elements such as hydrogen. This reaction enables hydroxyl radicals to inhibit the growth of pollutants. nanoe™ X can inhibit several types of bacteria, viruses, mould, allergens, pollen and certain hazardous substances. Furthermore, nanoe™ X also deodourises odour and moisturises skin and hair.
Asthma and Allergy Friendly
Panasonic nanoe™ X technology has been approved by the National Asthma Council Australia’s Sensitive Choice program, helping those with asthma and allergies breathe easier.
Connect & Control Your Air Conditioners Anywhere, Anytime
With the built-in Wi-Fi and Panasonic Comfort Cloud App, connect and control multiple air conditioning units from anywhere, at home or away.
Advanced Smart Control with Voice Assistant Compatibility
Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.
Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
*Comparison of ECO mode & normal mode by using 3.5kW Inverter Model. Not applicable for multi-split systems.
Comfort Cooling Environment for Your Needs
Faster and Further Airflow with AEROWINGS
AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
Faster Cooling with iAUTO-X
iAUTO-X provides 25%* faster cooling through the use of Panasonic Thermal Enhancement Technology (P-TECh) which enables the compressor to achieve maximum frequency quickly from start-up, allowing you to relish the cooling comfort instantly, even on a scorching hot day.
*Comparison of iAUTO-X mode & normal COOL mode by using 3.5kW Aero Z Series (AKR) model. Not applicable for multi-split systems.
Superior Quality & Reliability
Panasonic is uncompromising in product quality, durability, reliability and safety. We lead the market in many of the most extreme climates in the world for a good reason. Our products are engineered to provide uninterrupted cooling or heating when you need it most.
Robust Design and Long Term Endurance
Convenient Control at Your Fingertips

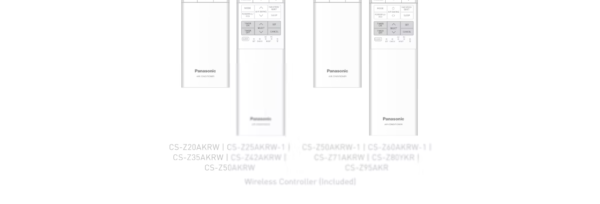

Wireless Remote Controller
The handheld wireless remote controller is designed for ease of operation and convenience with five quick access keys.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

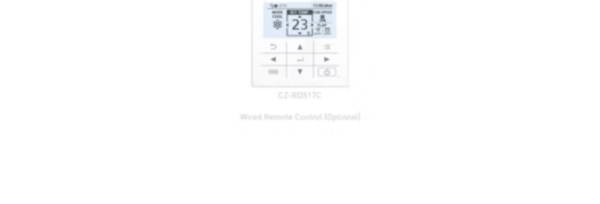

Optional Wired Remote Controller
The optional wired remote controller provides a large display for improved visibility and a vast range of information to ease operations.

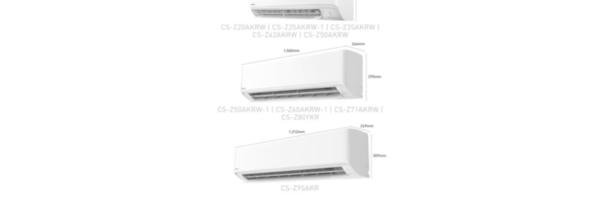

Range
|
Model |
  |
  |
  |
|||||||
|
Cooling Capacity |
2.05 kW |
2.50 kW |
3.50 kW |
4.20 kW |
5.00 kW |
5.00 kW |
6.00 kW |
7.10 kW |
8.00 kW |
9.5 kW |
|
6,990 Btu/h |
8,530 Btu/h |
11,900 Btu/h |
14,300 Btu/h |
17,100 Btu/h |
17,100 Btu/h |
20,500 Btu/h |
24,200 Btu/h |
27,300 Btu/h |
32,400 Btu/h |
|
|
Heating Capacity |
2.80 kW |
3.20 kW |
4.00 kW |
5.00 kW |
6.00 kW |
6.00 kW |
7.20 kW |
8.00 kW |
9.00 kW |
10.3 kW |
|
9,550 Btu/h |
10,900 Btu/h |
13,600 Btu/h |
17,100 Btu/h |
20,500 Btu/h |
20,500 Btu/h |
24,600 Btu/h |
27,300 Btu/h |
30,700 Btu/h |
35,100 Btu/h |
|
|

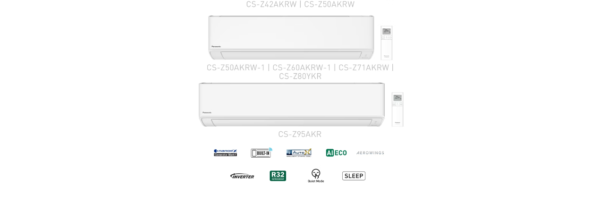

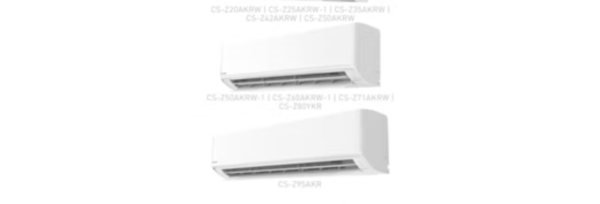

Indoor Unit |
CS-Z20AKRW |
CS-Z25AKRW-1 |
CS-Z35AKRW |
CS-Z42AKRW |
CS-Z50AKRW |
CS-Z50AKRW-1 |
CS-Z60AKRW-1 |
CS-Z71AKRW |
CS-Z80YKR |
CS-Z95AKR |
|

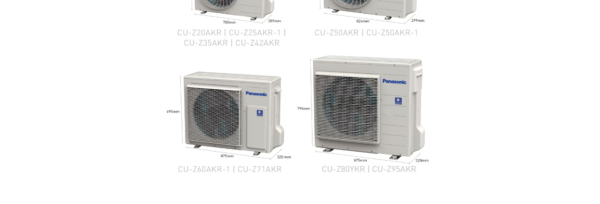

Outdoor Unit |
CU-Z20AKR |
CU-Z25AKR-1 |
CU-Z35AKR |
CU-Z42AKR |
CU-Z50AKR |
CU-Z50AKR-1 |
CU-Z60AKR-1 |
CU-Z71AKR |
CU-Z80YKR |
CU-Z95AKR |
|
Detailed Page |
||||||||||
nanoe™ X 24-hour air purification inhibits various pollutants and deodorises odours
Manage your air conditioner using mobile device with Built-in Wi-Fi and Comfort Cloud App
iAUTO-X Mode lets you enjoy instant powerful cooling during start-up
AEROWINGS concentrates cool air for further and faster airflow across the room
ECO Mode with A.I. control intelligently balances energy savings and comfort
Energy efficiency with Inverter technology and R32 refrigerant
