Product Description
Our low profile ducted PEAD 71 has a wide range of static pressures, that allows airflow to be directed to different areas of your home or office with ease. This unit is ideal for heating or cooling a number of rooms. Includes a PAR Wired Controller. The Wi-Fi range comes equipped with a Wi-Fi Control Interface (supplied separately), allowing you to control and monitor your heat pump from anywhere via your smartphone, tablet or online account.
Cooling
Capacity
7.1 kW
Heating
Capacity
8.0 kW
- Description
- Additional information
- Specifications
- Downloads
- Support
Description
Heat or cool your whole home with a central heating ducted heat pump system
Mitsubishi Electric Ducted Heat Pump Systems are the ultimate solution for unobtrusive, whole home comfort. Designed for easy installation in ceiling or bulkhead spaces, ducted heat pumps are largely hidden from view, with only subtle grilles visible. Using concealed ducting to connect multiple rooms for heating or cooling, these systems are ideal for residential or commercial applications.
Combining with optional Lossnay Fresh Air Ventilation
The Mitsubishi Electric Lossnay system is an energy recovery ventilation solution that can be integrated with the PEAD Ducted Heat Pump. The two systems will work together to further increase energy savings while ventilating your home to remove stale air and control moisture. The Lossnay system will recover the energy from stale air to pre-heat or pre-cool incoming fresh air, reducing the amount of additional heating or cooling required. Both systems can be controlled from one central wall mounted controller for optimum ease of use.
Optional ZoneIQ Ducted Zone Controller
Optional ZoneIQ gives you complete control over your home’s climate by dividing it into individual zones, each with its own temperature setting. Designed for Mitsubishi Electric ducted systems, it delivers personalised comfort throughout your home while intelligently adjusting airflow to suit how each space is used.
Low Profile Design
Our low profile ducted systems at 250mm in height are specifically designed for installation in tight ceiling spaces.
Next-Generation R32 Technology
R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.
Wide Range of Static Pressures with 3 Fan Speeds
Selectable external static pressure of 35, 50, 70, 100 and 125 Pa with 3 fan speeds allowing a wide range of installation possibilities.
Includes the Wi-Fi Control Interface
Locally developed to suit the busy lifestyles of New Zealanders, award-winning Wi-Fi Control unlocks the door to smarter heating. This innovative technology allows you to control or monitor your heat pump from anywhere via your smartphone, tablet or online account. Wi-Fi Control allows you to control your system remotely, develop operating rules, and set minimum and maximum room temperatures for healthy and comfortable living.
Deluxe PAR Weekly Controller
This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation.
You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail stores.
Additional information
| Controller Type | Advanced Wi-Fi Control |
|---|---|
| Optional Outdoor Performance | Standard SUZ System |

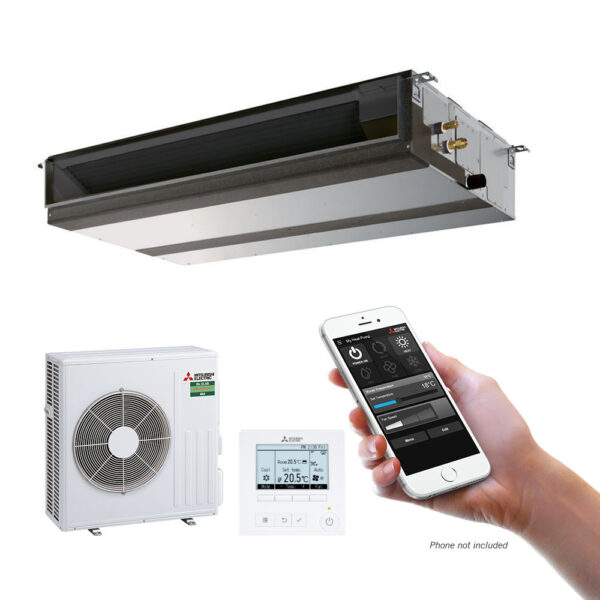

PEAD-M71JAA-S + MAC-588IF-E // Ducted PEAD 71 Heat Pump with Wi-Fi System
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| Rated | |||
| · | Capacity – Cooling: 7.1 kW | · | Capacity – Heating: 8.0 kW |
| · | Capacity – Cooling (min. – max.): 2.8 – 8.1 kW | · | Capacity – Heating (min. – max.): 2.6 – 10.2 kW |
| · | Power Input – Cooling: 1.98 kW | · | Power Input – Heating: 2.00 kW |
| · | Star rating – Cooling: NA | · | Star rating – Heating: NA |
| · | EER / COP: 3.48 / 4.00 | · | AEER / ACOP: 3.53 / 3.93 |
| · | Current – Cooling [In+Outdoor] (Rated): 8.70 A | · | Current – Heating [In+Outdoor] (Rated): 8.80 A |
| · | Current (Max.): 14.80 A | ||
| Performance | |||
| · | Operation Range – Cooling: -15 / +52 degC | · | Operation Range – Heating: -15 / +24 degC |
PEAD-M71JAAR1.TH – Ducted Indoor Unit
| · | Function: Cooling/Heating | · | Type: Single Split, Inverter |
| Nominal Capacity | |||
| · | Capacity – Cooling: 7.1 kW | · | Capacity – Heating: 8.0 kW |
| · | Sound Level – Cooling (Low – Super High, dB(A)): 30 / 33 / 38 | · | Sound Level – Heating (Low – Super High, dB(A)): 30 / 33 / 38 |
| · | Air Volume – Cooling (Super High, Litre/sec): 417 | · | Air Volume – Heating (Super High, Litre/sec): 417 |
| · | Refrigerant: R32 | · | Liquid Pipe Size (OD, mm): 9.52 |
| · | Gas Pipe Size (OD, mm): 15.88 | · | Max. Pipe Length (m): 50 |
| · | Max. Pipe Height (m): 30 | · | Power Supply: 230V / Single Phase / 50 Hz |
| · | Dimensions (WxDxH, mm): 1100 x 732 x 250 | · | Weight: 30.0 kg |
| · | External Static Pressure: 35-50-70-100-125 Pa | ||
SUZ-M71VAD-A.TH – DC Inverter Outdoor Unit
| · | Function: Cooling/Heating | · | Type: Single Split, Standard Inverter |
| · | Operation Range – Cooling: -15 / +52 degC | · | Operation Range – Heating: -15 / +24 degC |
| · | Sound Level – Cooling (dB(A)): 49 | · | Sound Level – Heating (dB(A)): 51 |
| · | Air Volume – Cooling (Litre/sec): 835 | · | Air Volume – Heating (Litre/sec): 835 |
| · | Power Supply: 230V +/- 10% / Single Phase / 50 Hz | · | Refrigerant: R32 |
| · | Liquid Pipe Size (OD, mm): 9.52 | · | Gas Pipe Size (OD, mm): 15.88 |
| · | Max. Pipe Length (m): 30 | · | Max. Pipe Height (m): 30 |
| · | Dimensions (WxDxH, mm): 840 x 330 x 880 | · | Weight: 55 kg |
PEAD-M71JAAR1.TH
PAR-41MAAM
MAC-588IF-E
