Product Description
Our low profile ducted PEAD 100 has a wide range of static pressures, that allows airflow to be directed to different areas of your home or office with ease. This unit is ideal for heating or cooling a number of rooms. Comes standard with a Deluxe PAR wired Controller, with backlit LCD display and user-friendly menus. With the PAR Controller you are able to precisely control power consumption and temperature, setting up to eight patterns per day.
Cooling
Capacity
10.0 kW
Heating
Capacity
11.2 kW
- Description
- Additional information
- Specifications
- Downloads
- Support
Description
Heat or cool your whole home with a central heating ducted heat pump system

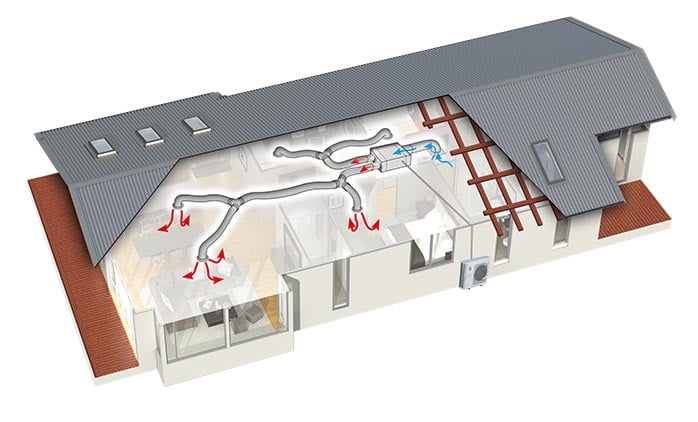

Mitsubishi Electric Ducted Heat Pump Systems are the ultimate solution for unobtrusive, whole home comfort. Designed for easy installation in ceiling or bulkhead spaces, ducted heat pumps are largely hidden from view, with only subtle grilles visible. Using concealed ducting to connect multiple rooms for heating or cooling, these systems are ideal for residential or commercial applications.
Combining with optional Lossnay Fresh Air Ventilation
The Mitsubishi Electric Lossnay system is an energy recovery ventilation solution that can be integrated with the PEAD Ducted Heat Pump. The two systems will work together to further increase energy savings while ventilating your home to remove stale air and control moisture. The Lossnay system will recover the energy from stale air to pre-heat or pre-cool incoming fresh air, reducing the amount of additional heating or cooling required. Both systems can be controlled from one central wall mounted controller for optimum ease of use.
Optional ZoneIQ Ducted Zone Controller
Optional ZoneIQ gives you complete control over your home’s climate by dividing it into individual zones, each with its own temperature setting. Designed for Mitsubishi Electric ducted systems, it delivers personalised comfort throughout your home while intelligently adjusting airflow to suit how each space is used.
Low Profile Design
Our low profile ducted systems at 250mm in height are specifically designed for installation in tight ceiling spaces.
Next-Generation R32 Technology
R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants.
Wide Range of Static Pressures with 3 Fan Speeds
Selectable external static pressure of 35, 50, 70, 100 and 125 Pa with 3 fan speeds allowing a wide range of installation possibilities.
Deluxe PAR Weekly Controller
This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation.
You can set up to 8 temperature and airflow patterns per day for seven days, allowing you to reduce your energy consumption when needed, saving you both time and money. Perfect for the busy home and office or retail stores.
Additional information
| Controller Type | Advanced Wi-Fi Control, Wired Weekly Controller |
|---|---|
| Optional Outdoor Performance | Deluxe PUZ System, Standard PUZ System |

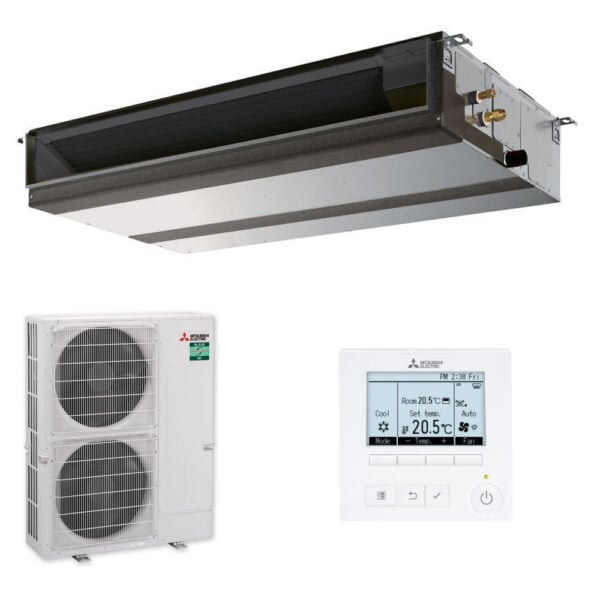

PEAD-M100JAA // Ducted PEAD 100 Heat Pump System
| • | Function: Cooling/Heating | • | Type: Single Split, Inverter |
| Rated | |||
| • | Capacity – Cooling: 10.0 kW | • | Capacity – Heating: 11.2 kW |
| • | Capacity – Cooling (min. – max.): 4.9 – 11.4 kW | • | Capacity – Heating (min. – max.): 4.5 – 14.0 kW |
| • | Power Input – Cooling: 2.67 kW | • | Power Input – Heating: 2.80 Kw |
| • | Star rating – Cooling: NA | • | Star rating – Heating: NA |
| • | EER / COP: 3.74 / 4.00 | • | AEER / ACOP: 3.60 / 3.86 |
| • | Current – Cooling [In+Outdoor] (Rated): 12.20 A | • | Current – Heating [In+Outdoor] (Rated): 12.70 A |
| • | Current (Max.): 29.18 A | ||
| Performance | |||
| • | Operation Range – Cooling: -5 / +52 degC | • | Operation Range – Heating: -20 / +21 degC |
PEAD-M100JAAR1.TH – Ducted Indoor Unit
| • | Function: Cooling/Heating | • | Type: Single Split, Inverter |
| Nominal Capacity | |||
| • | Capacity – Cooling: 10.0 kW | • | Capacity – Heating: 11.2 kW |
| • | Sound Level – Cooling (Low – Super High, dB(A)): 33 / 38 / 42 | • | Sound Level – Heating (Low – Super High, dB(A)): 33 / 38 / 42 |
| • | Air Volume – Cooling (Super High, Litre/sec): 567 | • | Air Volume – Heating (Super High, Litre/sec): 567 |
| • | Refrigerant: R32 | • | Liquid Pipe Size (OD, mm): 9.52 |
| • | Gas Pipe Size (OD, mm): 15.88 | • | Max. Pipe Length (m): 75 |
| • | Max. Pipe Height (m): 30 | • | Power Supply: 230V / Single Phase / 50 Hz |
| • | Dimensions (WxDxH, mm): 1400 x 732 x 250 | • | Weight: 39.0 kg |
| • | External Static Pressure: 35-50-70-100-125 Pa | ||
PUZ-ZM100VKA2-A.TH – R32 Inverter Outdoor Unit
| • | Function: Cooling/Heating | • | Type: Single Split, Standard Inverter |
| • | Operation Range – Cooling: -5 / +52 degC | • | Operation Range – Heating: -20 / +21 degC |
| • | Sound Level – Cooling (dB(A)): 49 | • | Sound Level – Heating (dB(A)): 51 |
| • | Air Volume – Cooling (Litre/sec): 1833 | • | Air Volume – Heating (Litre/sec): 1833 |
| • | Power Supply: Single phase, 230 V, 50Hz | • | Refrigerant: R32 |
| • | Liquid Pipe Size (OD, mm): 9.52 | • | Gas Pipe Size (OD, mm): 15.88 |
| • | Max. Pipe Length (m): 75 | • | Max. Pipe Height (m): 30 |
| • | Dimensions (WxDxH, mm): 1050 x 330 x 1338 | • | Weight: 116 kg |
· Rating Conditions (AS / NZS 3823):
Cooling – Indoor: 27°C DB, 19°C WB. Outdoor: 35°C DB. Heating – Indoor: 20°C DB, Outdoor: 7°C DB, 6°C WB.
· Sensible Cooling Conditions, Indoor: 27°C DB, 20°C WB. Outdoor: 35°C DB.
· Dry function will not work when the room temperature is below 13°C.
· Colour: Heat pump units shown may not be colour accurate, please ensure you view an actual unit for colour matching.
· Maximum length is inclusive of height differential. i.e. (20m length/12m high) means the pipe can be 12m high and 8m across for a total length of 20m.
· Measure of Energy Efficency: A calculated measurement of energy efficiency for both heating and cooling using the ratio of kW input to kW output.
EER = Energy Efficiency Ratio
COP = Coefficient of Performance
AEER# = Annual Energy Efficiency Ratio
ACOP# = Annual Coefficient of Performance
#These include standby power in the rating calculation
· Star Ratings based on the Seasonal Energy Rating standard for New Zealand – cold zone [GEMS 2019]
